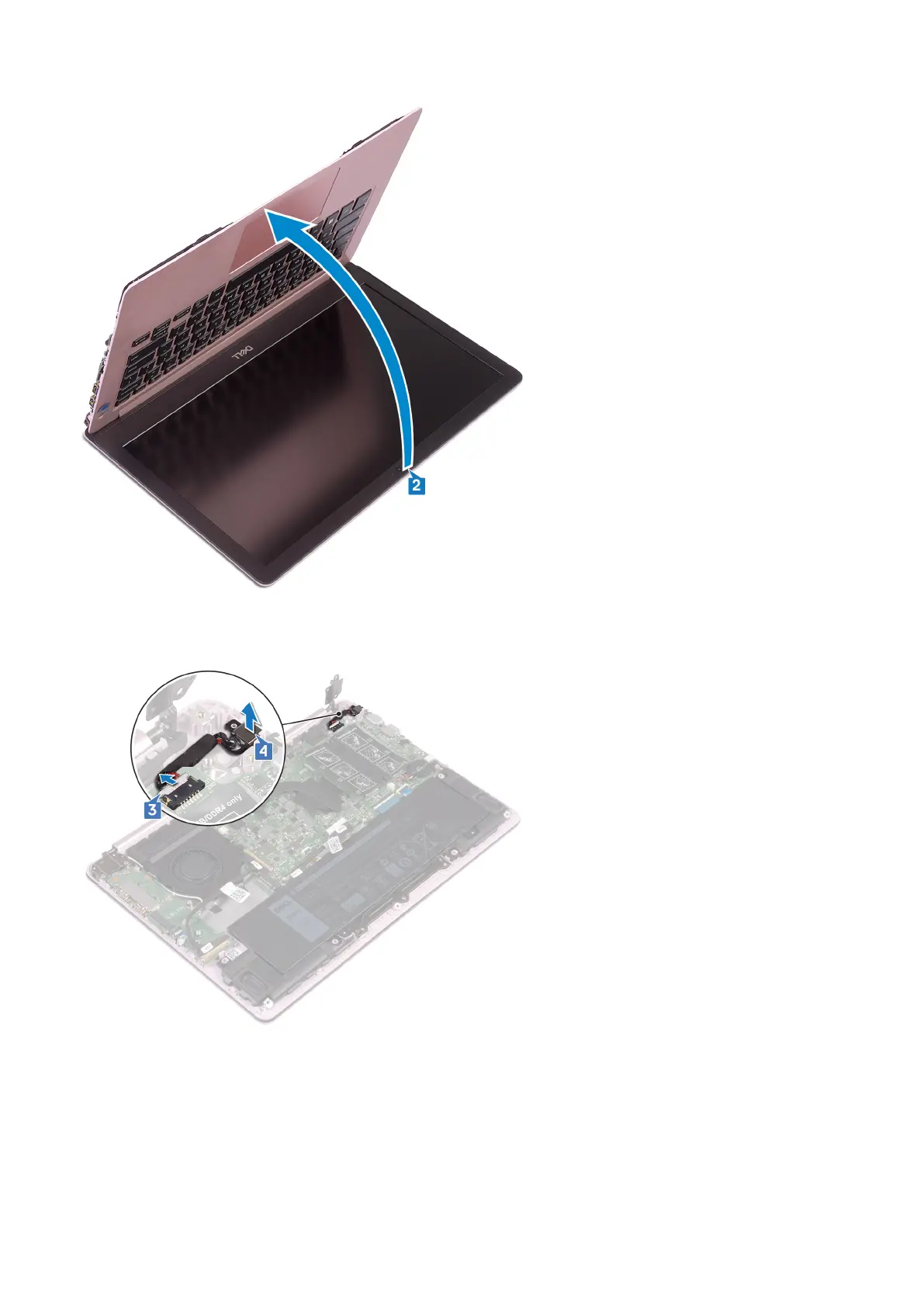

3. Disconnect the power-adapter port cable from the system board.

4. Lift the power-adapter port, along with its cable, off the palm-rest and keyboard assembly.

Removing the power-adapter port
