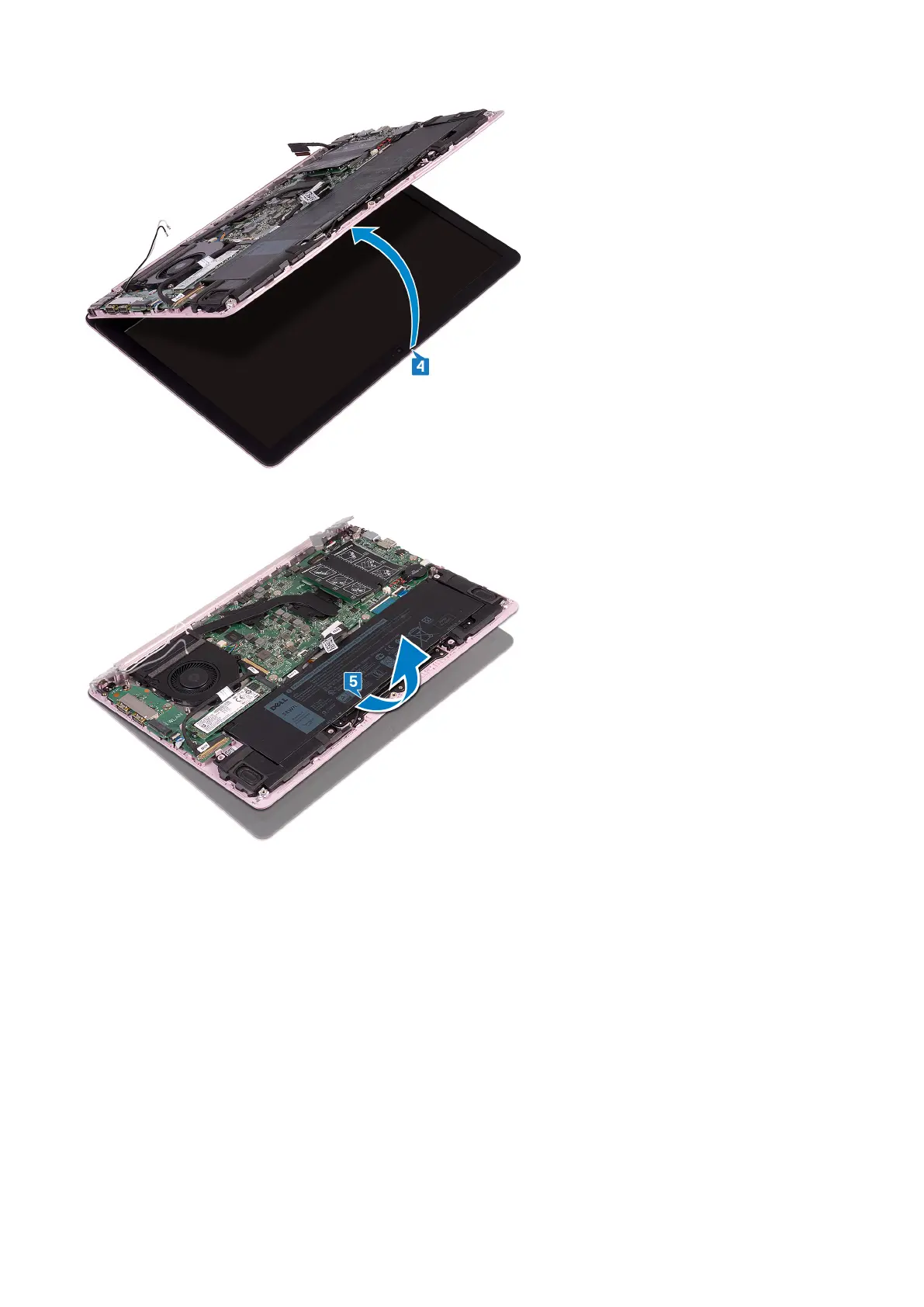

5. Slide and remove the palm-rest and keyboard assembly off the display assembly.

6. After performing all the above steps, you are left with display assembly.
