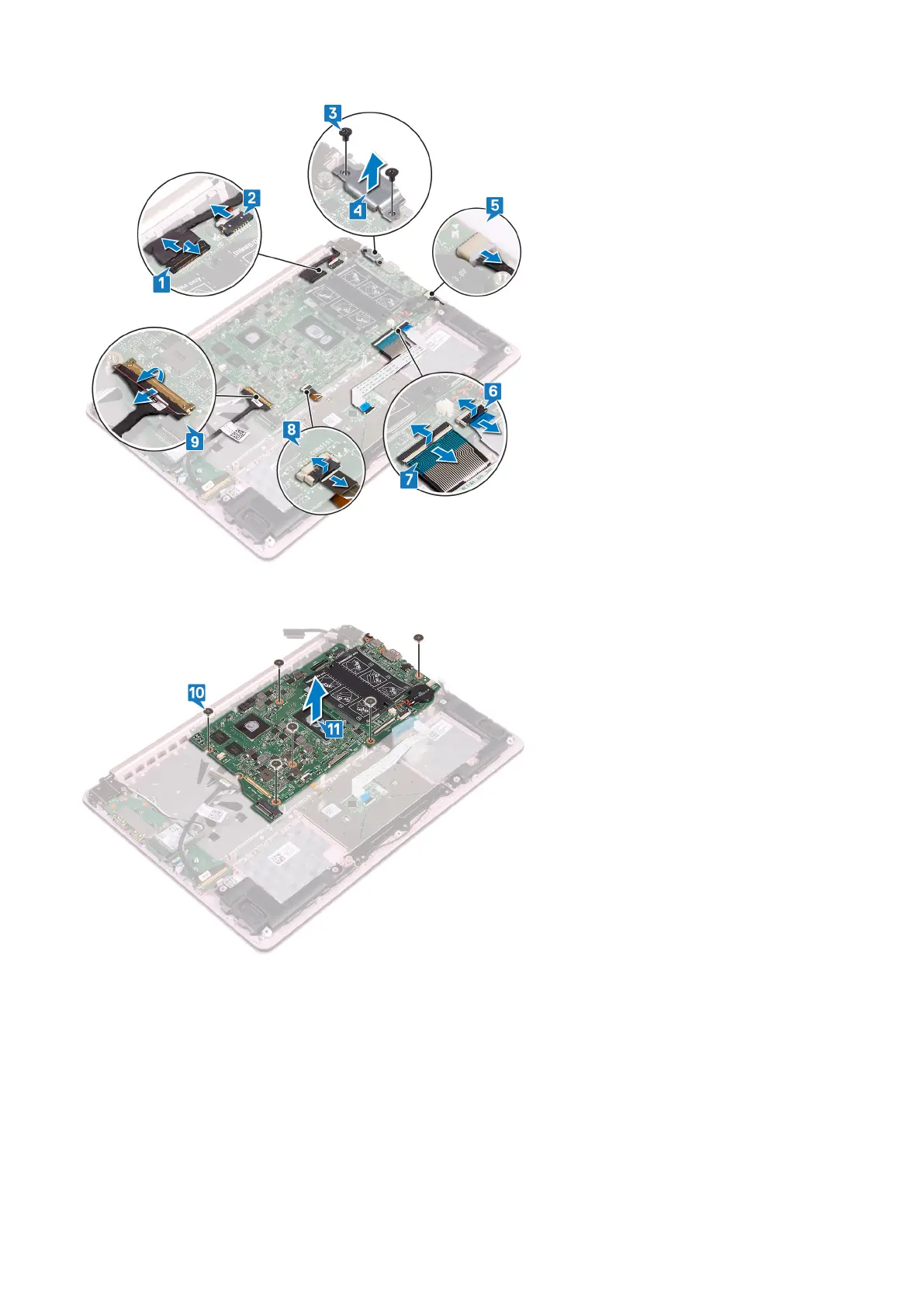

10. Remove the six screws (M2x2) that secure the system board to the palm-rest and keyboard assembly.

11. Lift the system board off the palm-rest and keyboard assembly.

Removing the system board
