Steps

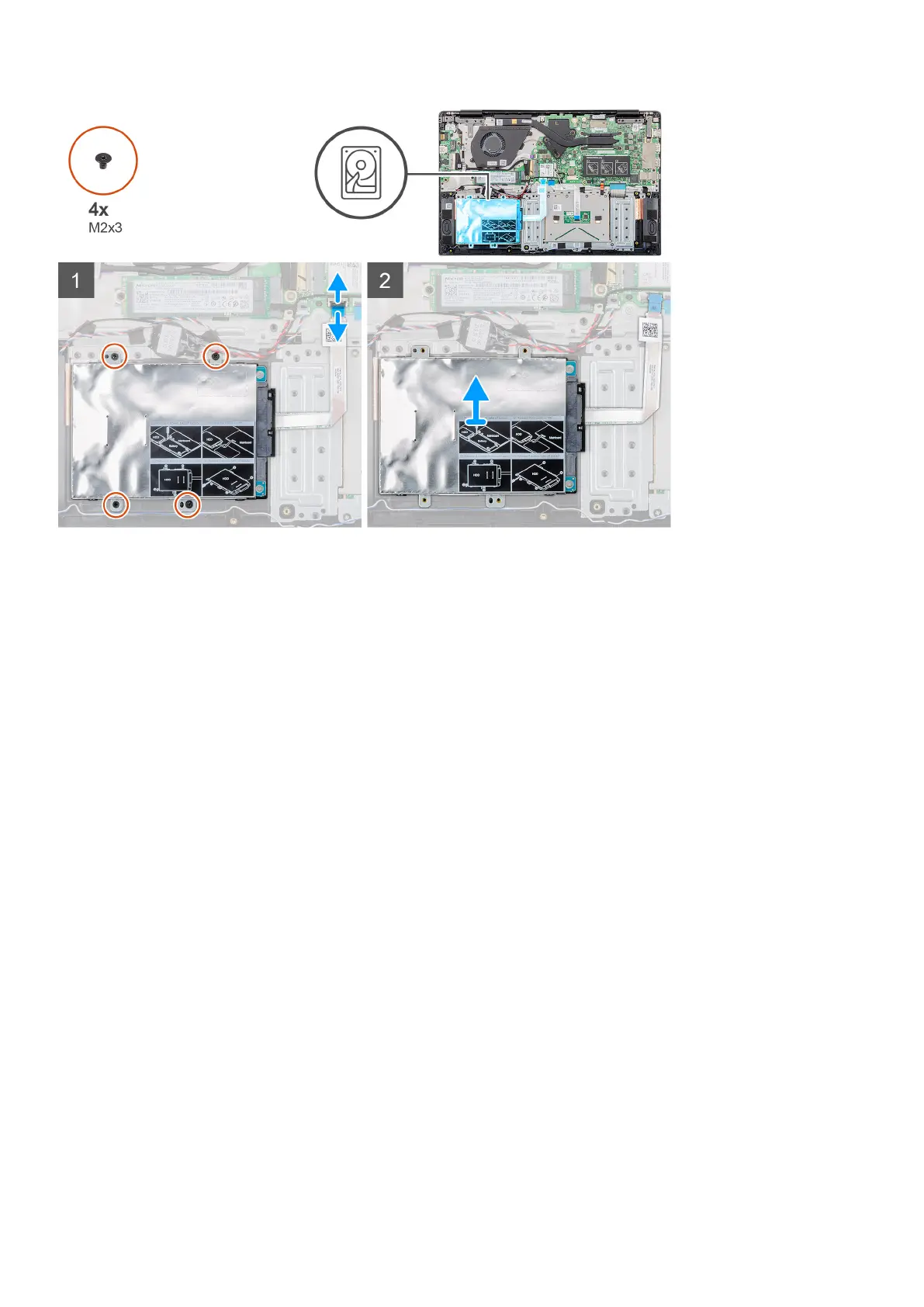

1. Release the latch and disconnect the hard-drive cable from the connector on the system board.
2. Remove the four (M2x3) screws that secure the hard-drive module to the palmrest assembly.
3. Slide the hard-drive module out from the computer.
Installing the hard drive
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The figure indicates the location of the 2.5 in. hard-drive module and provides a visual representation of the installation
procedure.
18
Removing and installing components
