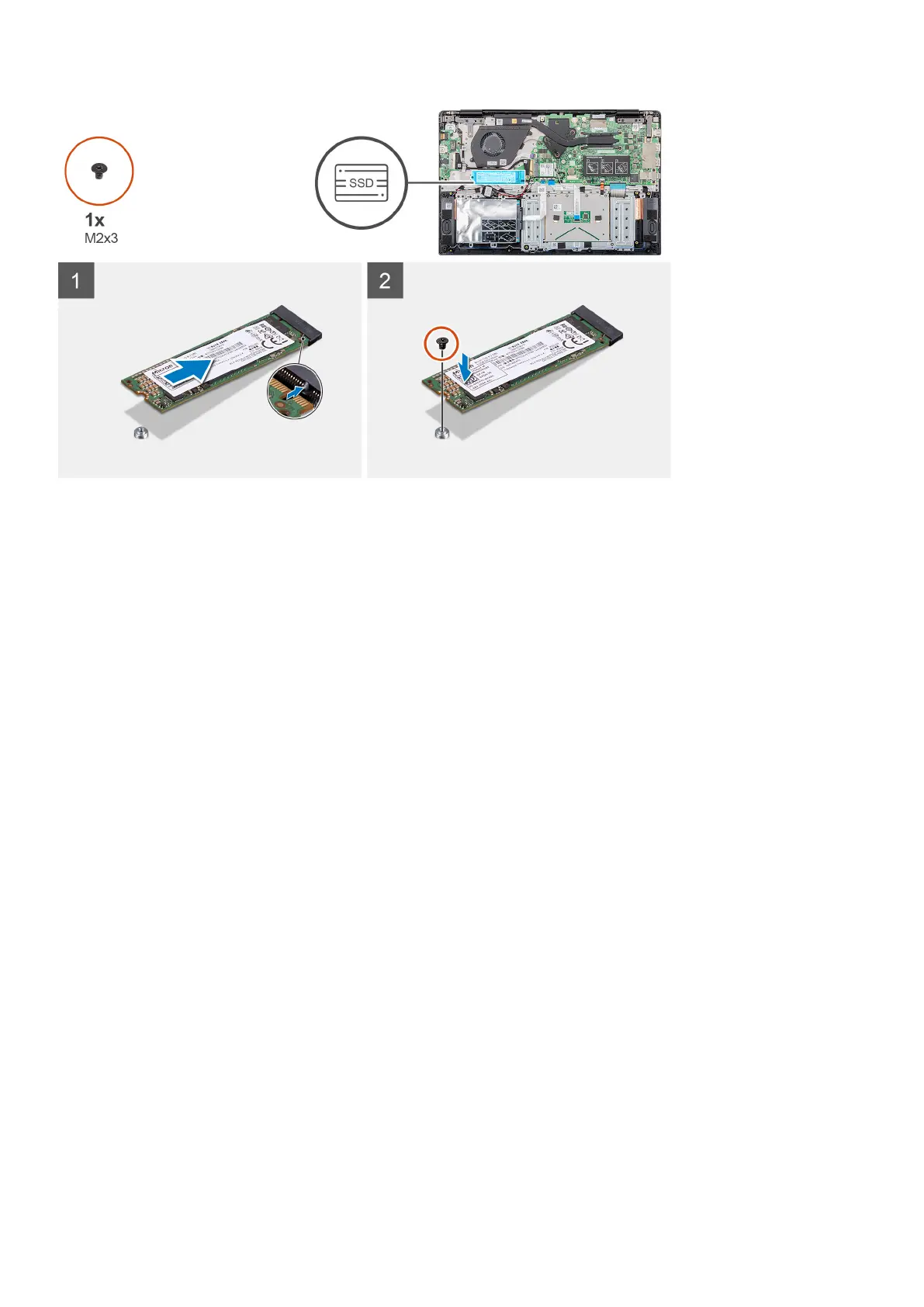

Steps
1. Align and slide the solid-state drive into the M.2 slot.
2. Replace the single (M2x3) screw to secure the solid-state drive module to the palmrest assembly.
Next steps
1. Install the battery.
2. Install the base cover.
3. Follow the procedure in After working inside your computer.
WLAN card
Removing the WLAN card
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
About this task
The figure indicates the location of the WLAN card and provides a visual representation of the removal procedure.
26
Removing and installing components
