Steps

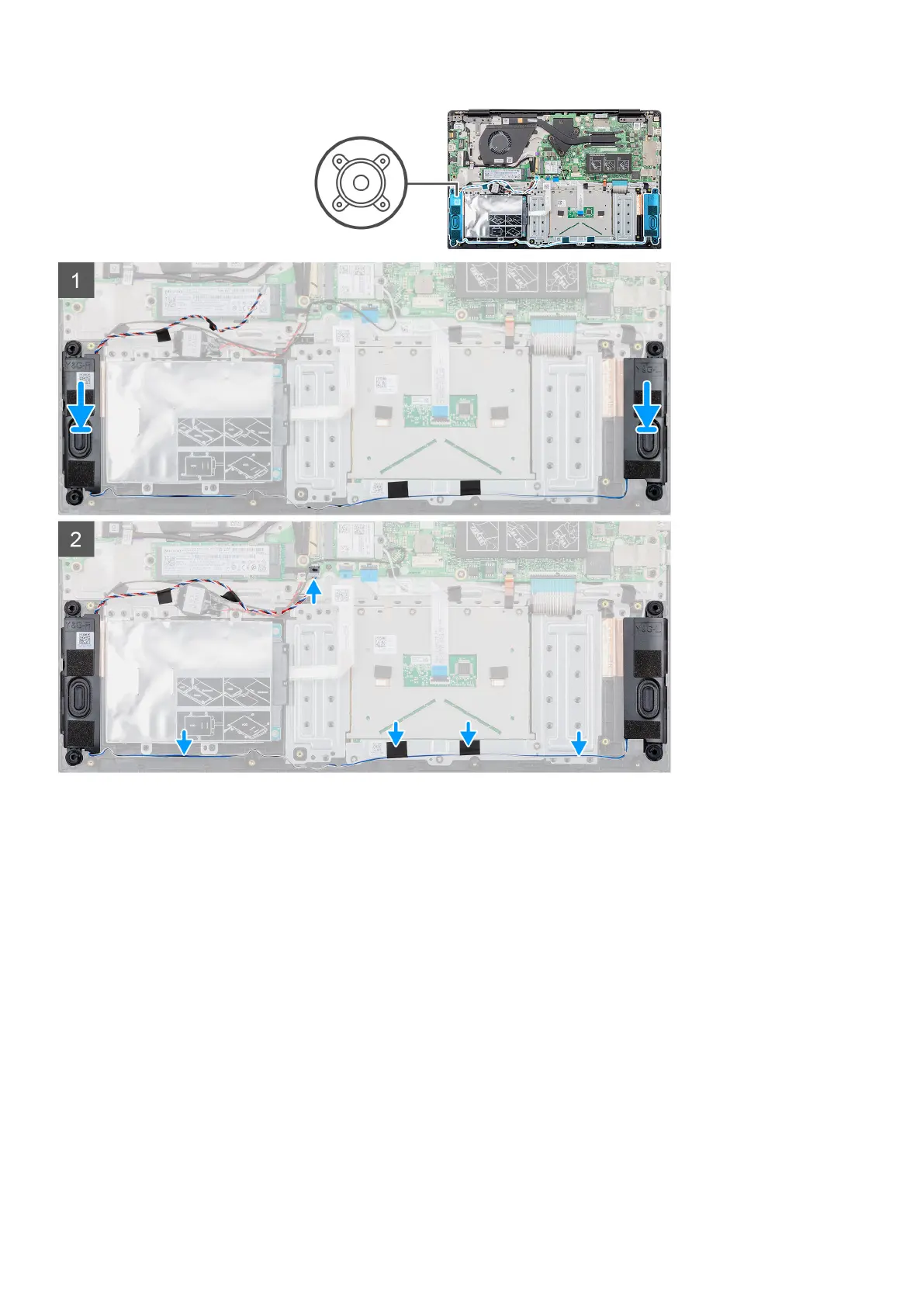

1. Locate the speaker slot on your computer.
2. Align and place the speakers in the slot on your computer.
3. Connect the speaker cable to the connector on the system board.
4. Route the speaker cables through the retention clips on your computer.
5. Adhere the adhesive tape to secure the speaker cable.
Next steps
1. Install the battery.
2. Install the base cover.
3. Follow the procedure in After working inside your computer.
32
Removing and installing components
