3. Remove the battery.
4. Remove the M.2 2230 SSD or M.2 2242 SSD or M.2 2280 SSD.
5. Remove the memory.
6. Remove the WLAN.
7. Remove the heatsink-discrete or heatsink- UMA.
8. Remove the power-adapter port.
About this task

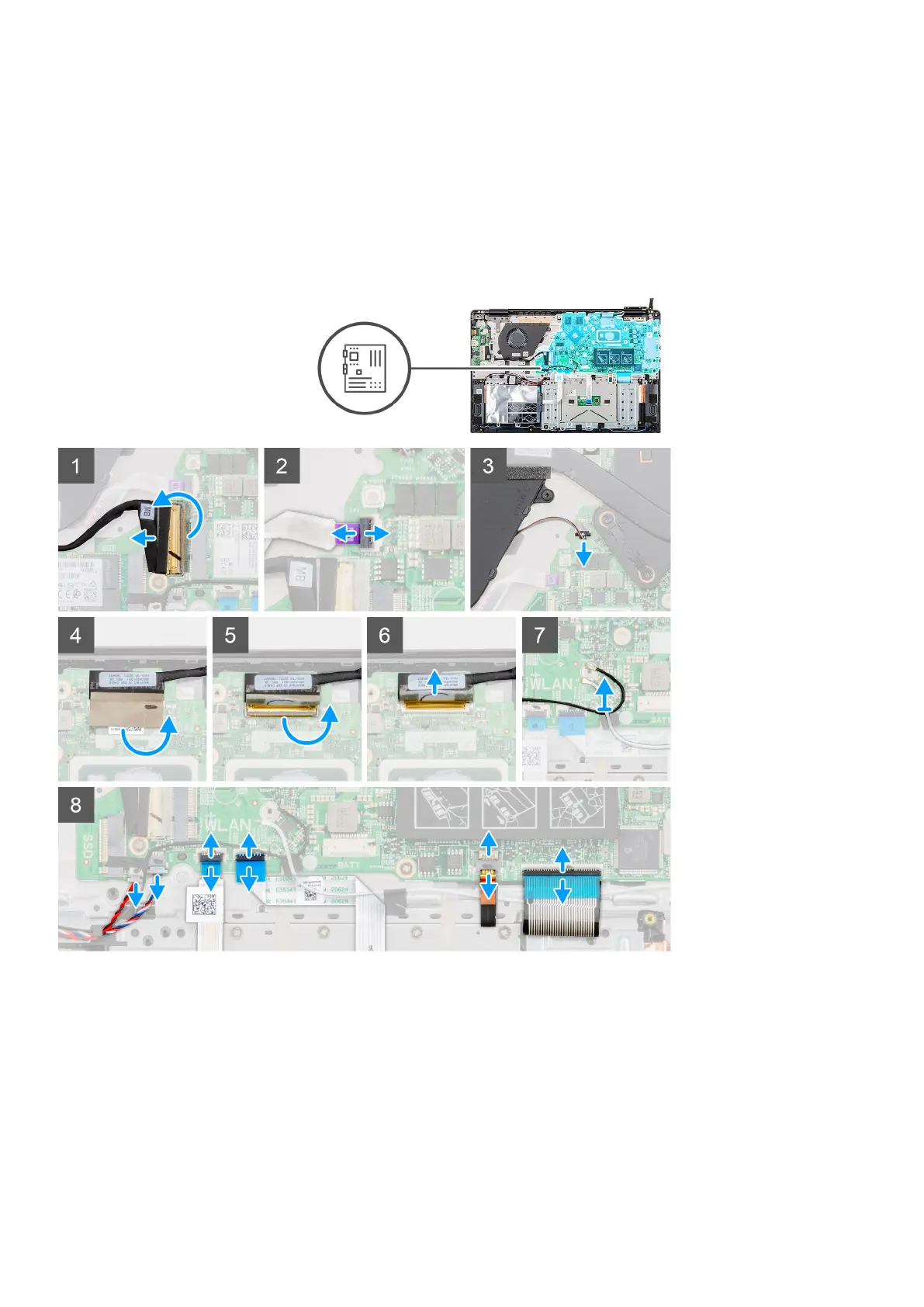

The figure indicates the location of the system board and provides a visual representation of the removal procedure.
