About this task

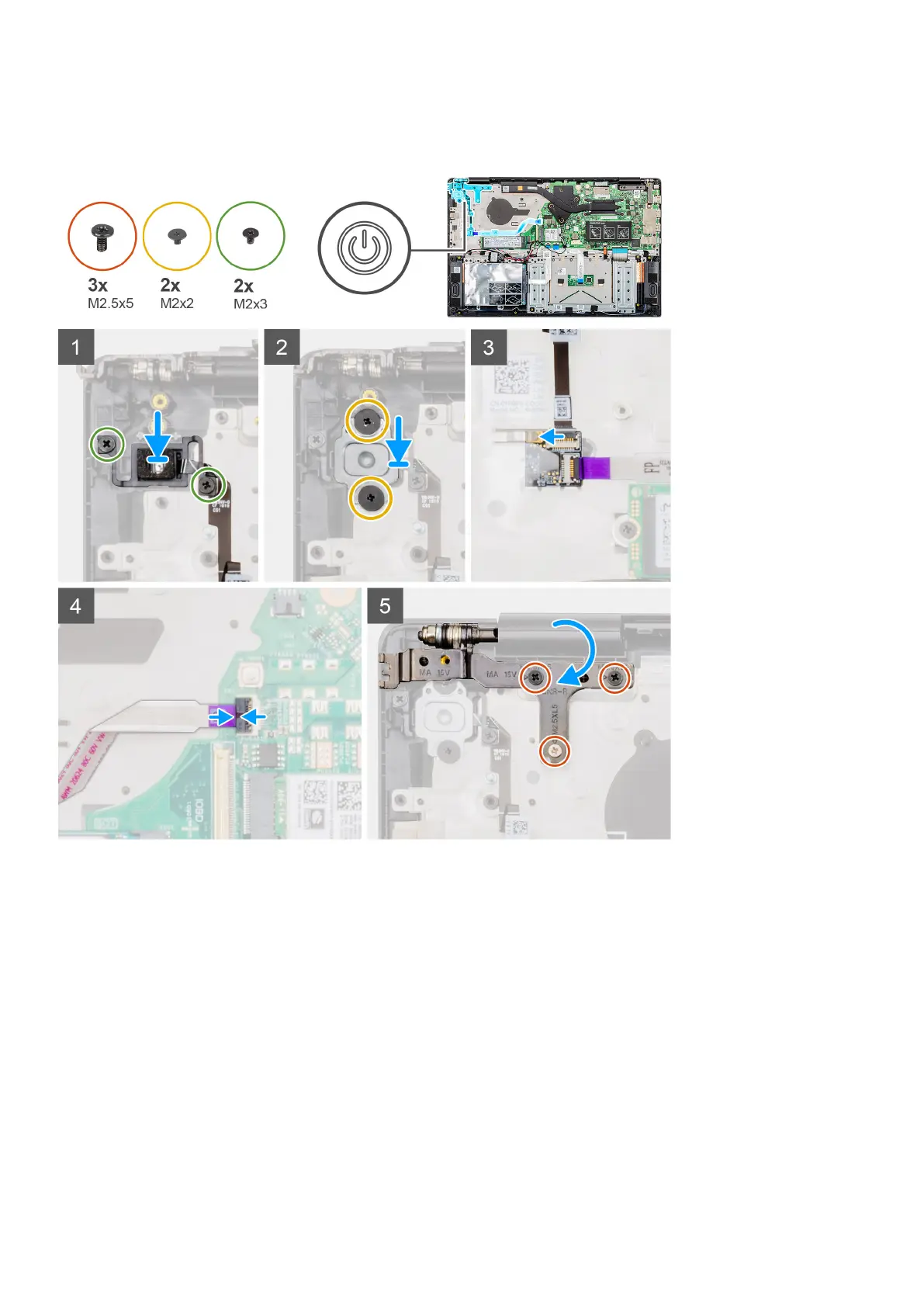

The figure indicates the location of the power button with fingerprint and provides a visual representation of the installation
procedure.
Steps
1. Locate the power button with fingerprint slot on your computer.
2. Align and place the power button with fingerprint into the slot on your computer.
3. Replace the two (M2x3) screws to secure the power button with fingerprint to the palmrest assembly.
4. Replace the two (M2x2) screws to secure the power button bracket to the palmrest assembly.
5. Connect the fingerprint reader cable to the connector on the power button cable.
6. Connect the power button cable to the connector on the system board.
7. Close the right display hinge and replace the three (M2.5x5) screws to secure the right display hinge to the palmrest
assembly.
Next steps
1. Install the Input and output board.
2. Install the system fan.
3. Install the battery.
4. Install the base cover.
