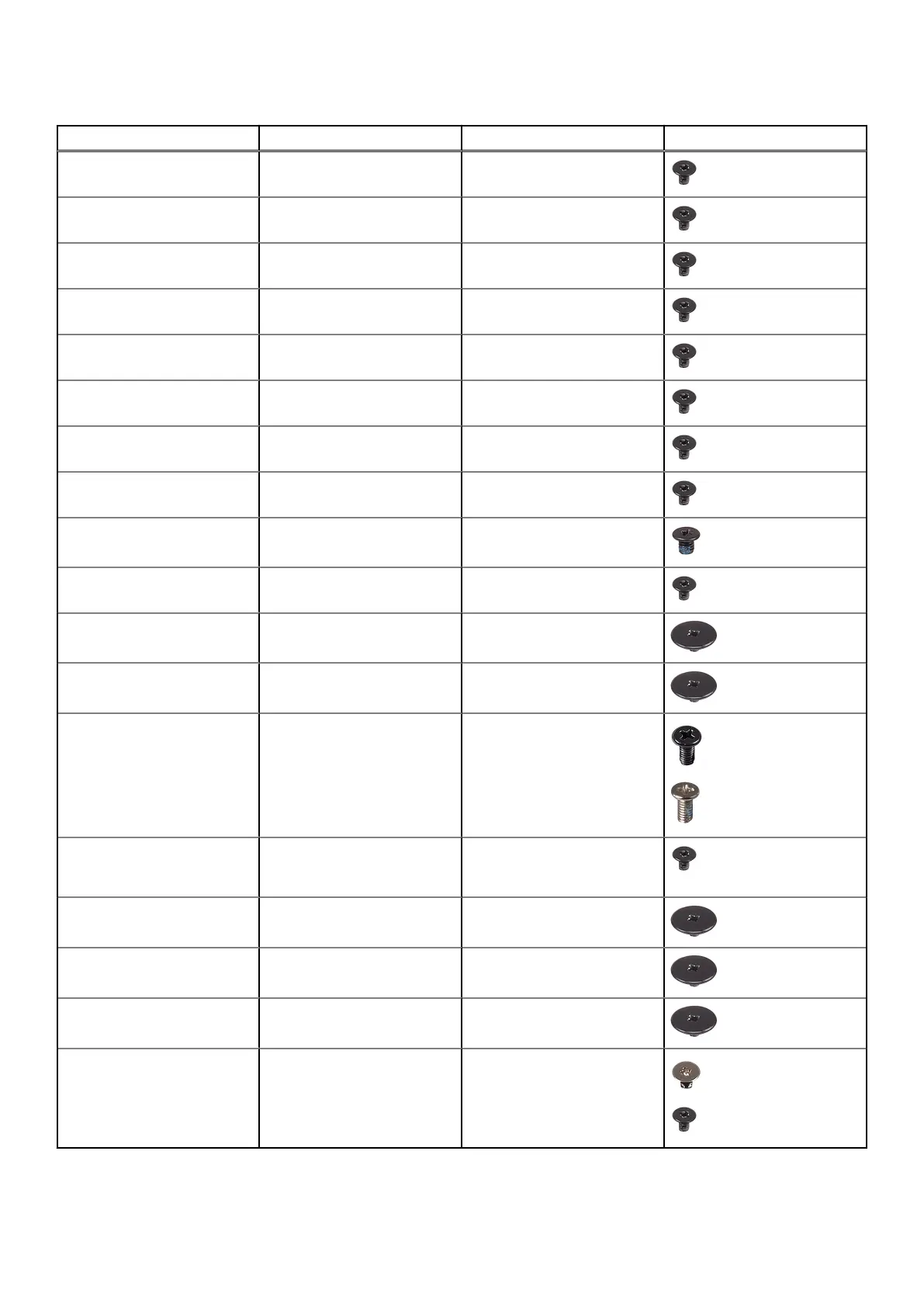

Table 1. Screw Size List (continued)

Component Screw type Quantity Image

Battery M2x3 4

WLAN M2x3 1

System fan M2x3 2

DC-In M2x3 1

SSD M2x3 1

Input output board M2x3 2

USB Type-C bracket M2x3 2

HDD assembly M2x3 4

HDD bracket M3x3 4

Power button M2x3 2

Touchpad button bracket M2x2 (Big Head) 3

Touchpad board M2x2 (Big Head) 4

Hinge plate M2.5x5

M2x4

Heatsink - UMA

Heatsink - Discrete

M2x3

System board M2x2 (Big head) 5

Fingerprint board M2x2 (Big Head) 2

Power button board M2x2 (Big Head) 2

Display Hinges M2.5x2.5 (Big head)

M2x3
