Replacing the display assembly
WARNING
: Before working inside your computer, read the safety information that shipped with your computer and follow the
steps in
Before working inside your computer. After working inside your computer, follow the instructions in After working inside
y
our computer. For more safety best practices, see the Regulatory Compliance home page at
www.dell.com/
r
egulatory_compliance.
Procedure

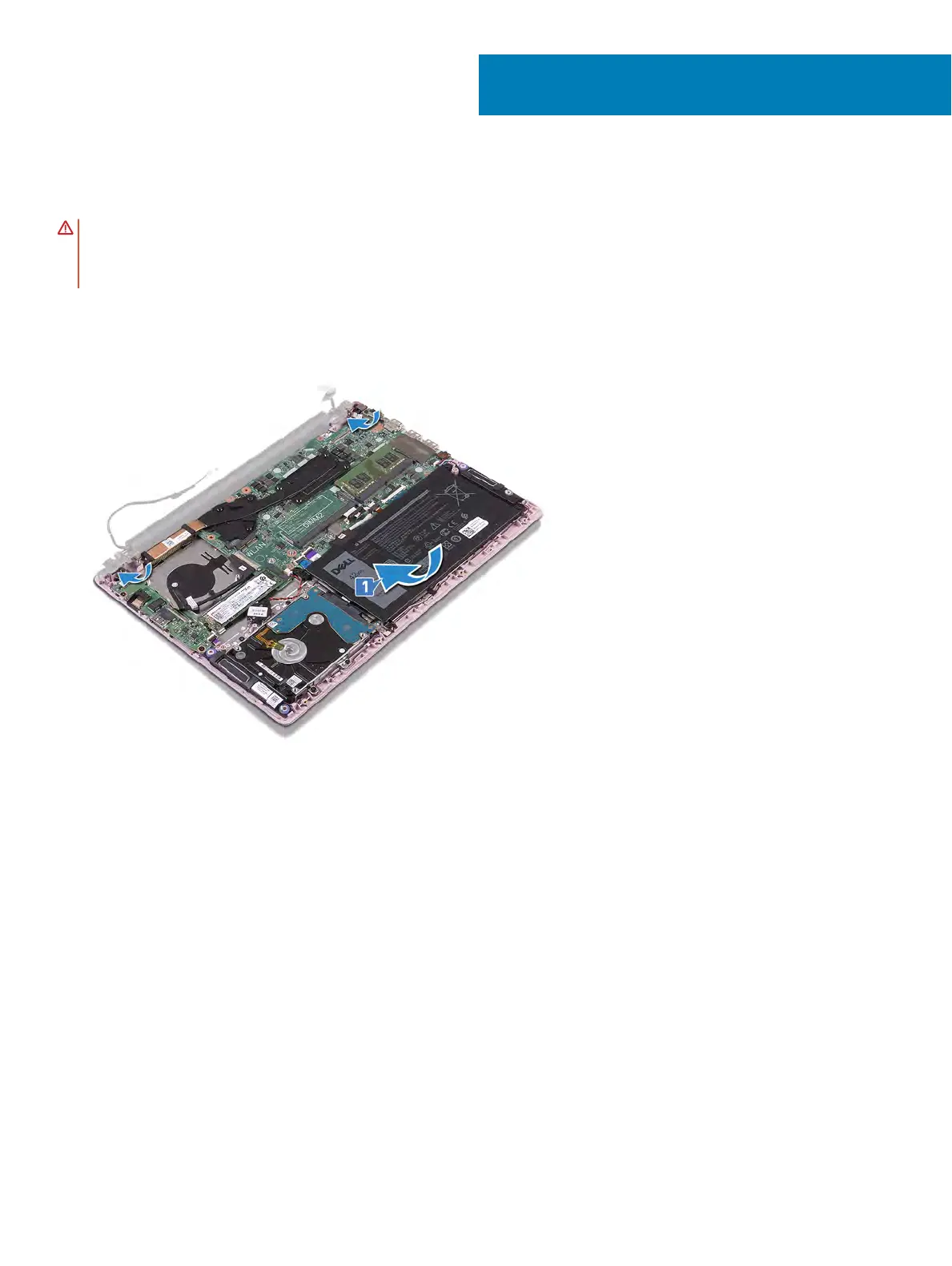

1 Slide the palm-rest and keyboard assembly at an angle under the hinges on the display assembly.
2 Align the screw holes on the display hinges with the screw holes on the palm-rest and keyboard assembly.
3 Replace the four screws (M2.5x5) that secure the display assembly to the palm-rest and keyboard assembly.
4 Route the antenna cables along the routing guides on the fan.
