Dell PowerEdge 2950 - Page 143

Jumpers and Connectors 143

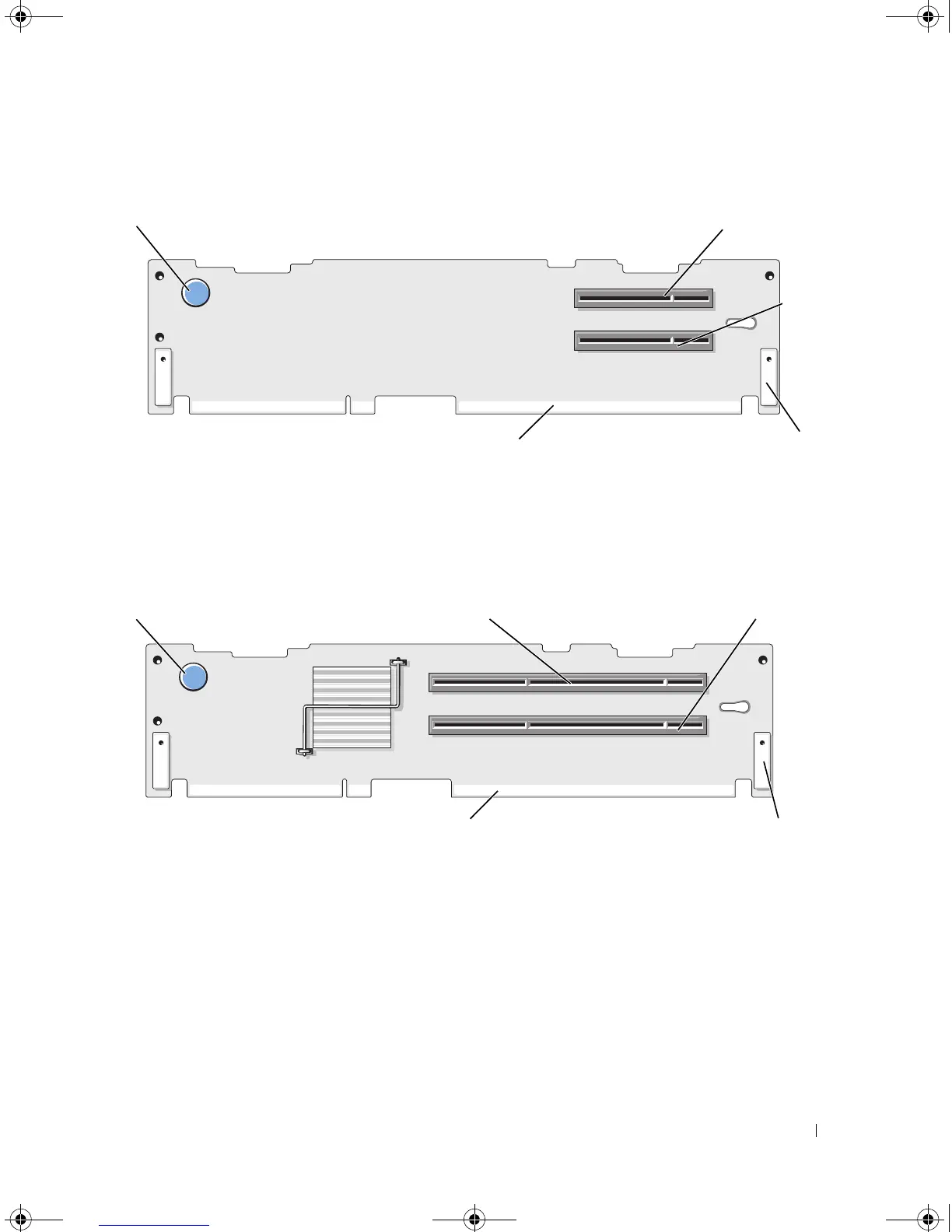

Figure 6-7. Optional PCIe Left Expansion-Card Riser Board Components
Figure 6-8. Optional PCI-X Left Expansion-Card Riser Board Components
1 riser release pin 2 slot 2 PCIe x8 lane width 3 slot 3 PCIe x4 lane width
4 pin guide (2) 5 system board connector
1 riser release pin 2 slot 2 PCI-X 133-MHz 3 slot 3 PCI-X 133-MHz
4 pin guide (2) 5 system board connector
