142 Jumpers and Connectors
Sideplane Board Connectors
See Figure 6-6 for the location and description of connectors on the sideplane board.

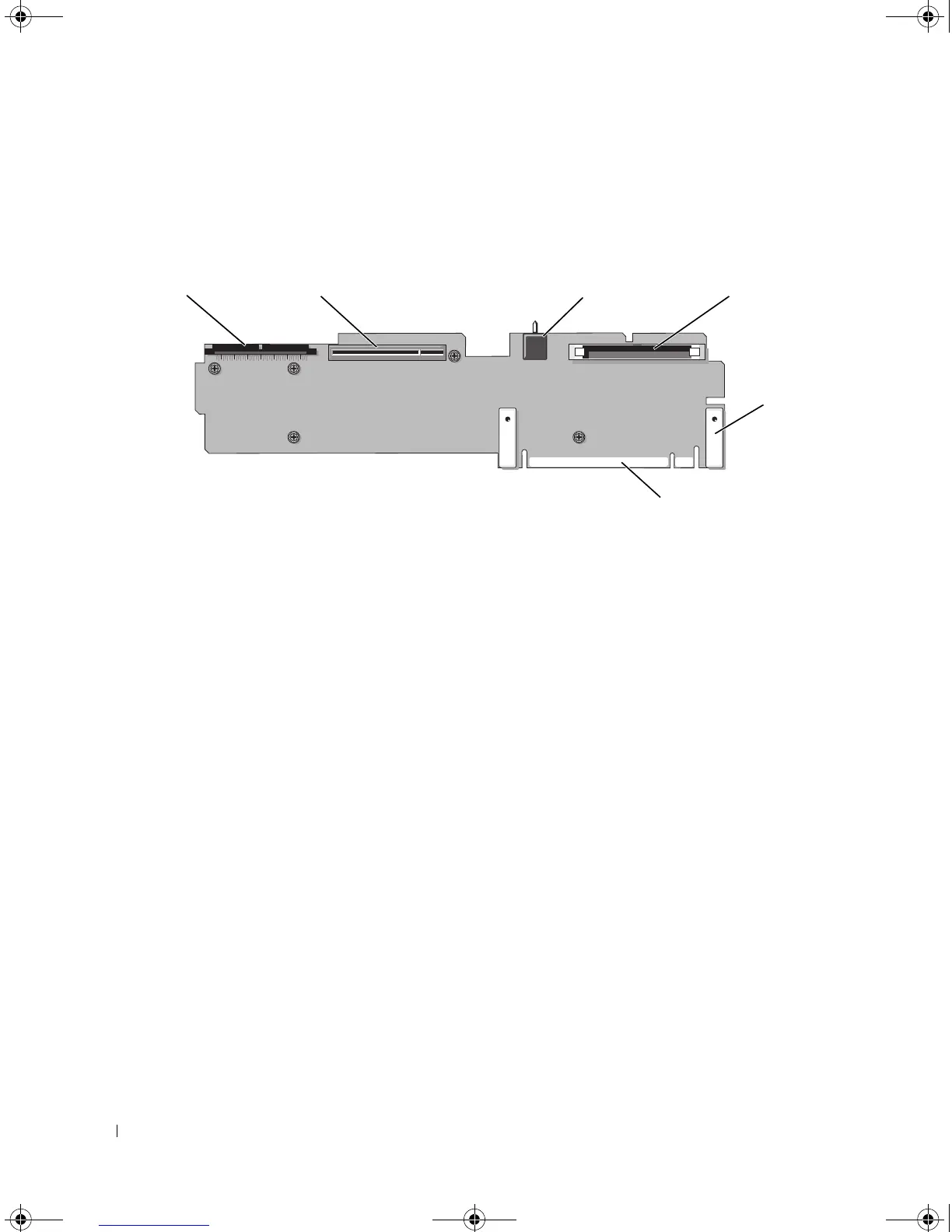

Figure 6-6. Sideplane Board Connectors
Expansion-Card Riser-Board Components and PCI Buses
Figure 6-7, Figure 6-8, and Figure 6-9 show the components on the optional PCI-X/PCIe expansion-card
riser boards, including the expansion-card slots and buses.
1 control panel (CTRL) 2 SAS controller daughter card
(PCIE_STORAGE)
3 chassis intrusion switch
4 CD IDE (IDE) 5 pin guides (2) 6 system board connector
1
5
6
2 3 4
Book.book Page 142 Friday, February 3, 2006 11:09 AM
