Jumpers and Connectors 129
Jumpers and Connectors
System Board Connectors
This section provides specific information about the system jumpers. It also
provides some basic information on jumpers and switches and describes the
connectors on the various boards in the system.

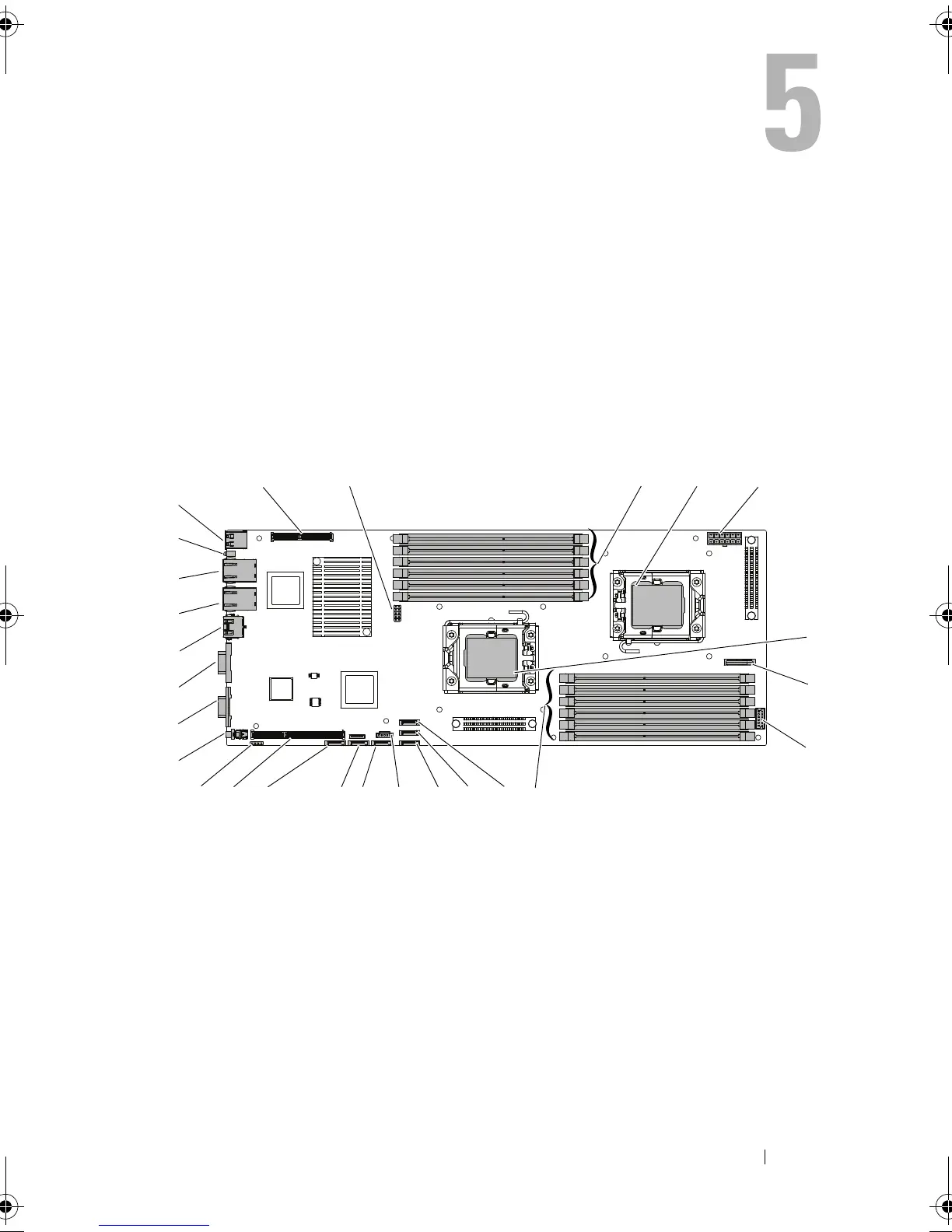

Figure 5-1. System Board Connectors
1 PCI-E mezzanine card connector 2 system configuration jumper
3 DIMM sockets for processor 1 4 processor 0
5 main power connector 6 processor 1
7 system battery 8 front panel connector
9 DIMM sockets for processor 0 10 onboard SATA2 connector 1
11 onboard SATA2 connector 2 12 onboard SATA2 connector 3
13 SGPIO connector 14 onboard SATA2 connector 4
15 onboard SATA2 connector 5 16 onboard SATA2 connector 6
20
22
21
7
8
161718
19
23
24
25
15
12 34
5
6
14
12
13 11 10 9
26
