Dell PowerEdge C6100 - System Configuration Jumper Settings

140 Jumpers and Connectors
System Configuration Jumper Settings
The function of system configuration jumper installed on each system board
is shown below:

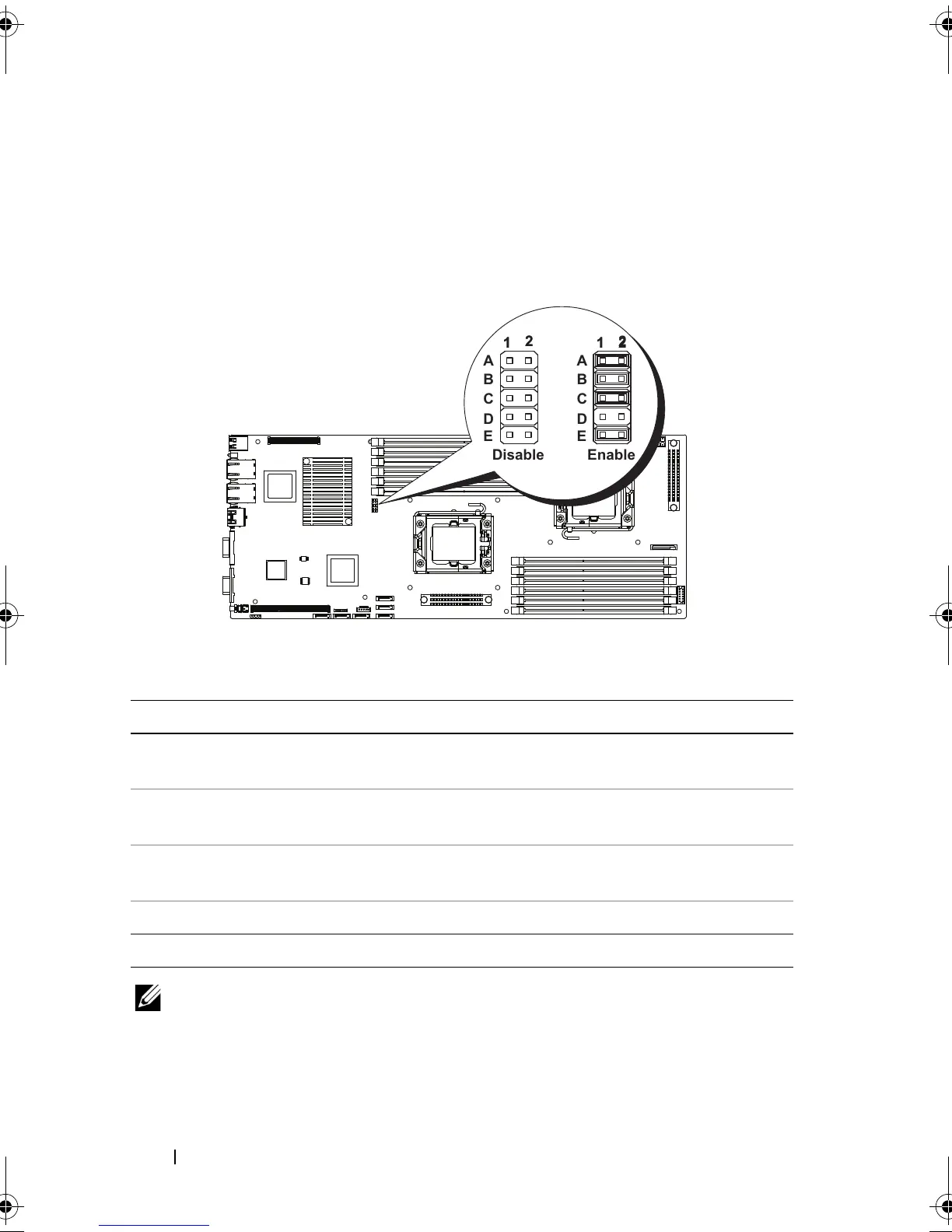

Figure 5-14. System Configuration Jumper
NOTE: The * in the table of system configuration jumper describes the default
status and the default state is not active state.
Table 5-1. System Configuration Jumper
Jumper Function Off On
A ME Function
Disable for Debugs
*Disable Enable
B Reserved for BIOS
PCI-E Setup
--
C BIOS Clear
Password
*Disable Enable
D BIOS Clear CMOS *Disable Enable
E System Reset *Disable Enable
1
2
1
2
1
2
1
2
A
B
C
D
Disable
E
A
B
C
D
E
Enable
