Dell PowerEdge C6100 - 2.5 Drives

132 Jumpers and Connectors
2.5" drives

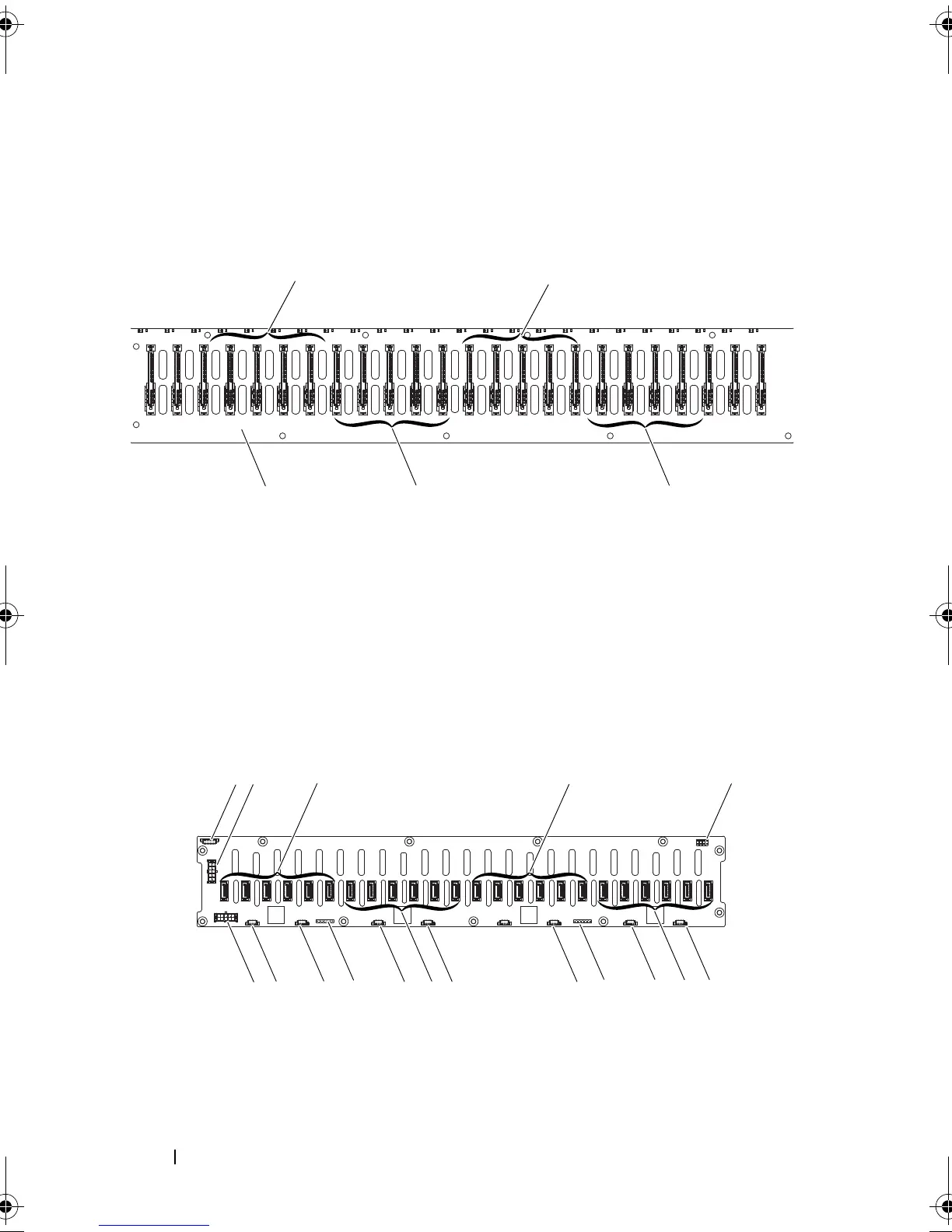

Figure 5-4. Front View of the Backplane
Figure 5-5. Back View of the Backplane—Type 1
1 SATA2 and SAS connectors 1 to 6 for
system board 1 (from left to right)
2 SATA2 and SAS connectors 1 to 6 for
system board 3 (from left to right)
3 SATA2 and SAS connectors 1 to 6 for
system board 4 (from left to right)
4 SATA2 and SAS connectors 1 to 6 for
system board 2 (from left to right)
5 2.5" backplane
1
2
4
3
5
2
4
3
7
15
6891012131415161718
