Jumpers and Connectors 133
Figure 5-6. Back View of the Backplane—Type 2
1 system fan board connector 2 backplane power connector for power
supply 1
3 SATA2 hard drive connectors 1 to 6
for system board 4 (from right to left)
4 SATA2 hard drive connectors 1 to 6 for
system board 2 (from right to left)
5 backplane jumper 6 SGPIO connector A for system board 1
7 SATA2 hard drive connectors 1 to 6
for system board 1 (from right to left)
8 SGPIO connector B for system board 1
9 CPLD JTAG connector 1 10 SGPIO connector A for system board 2
11 SGPIO connector B for
system board 2
12 SGPIO connector A for system board 3
13 SATA2 hard drive connectors 1 to 6
for system board 3 (from right to left)
14 SGPIO connector B for system board 3
15 CPLD JTAG connector 2 16 SGPIO connector A for system board 4
17 SGPIO connector B for
system board 4
18 backplane power connector for
power supply 2

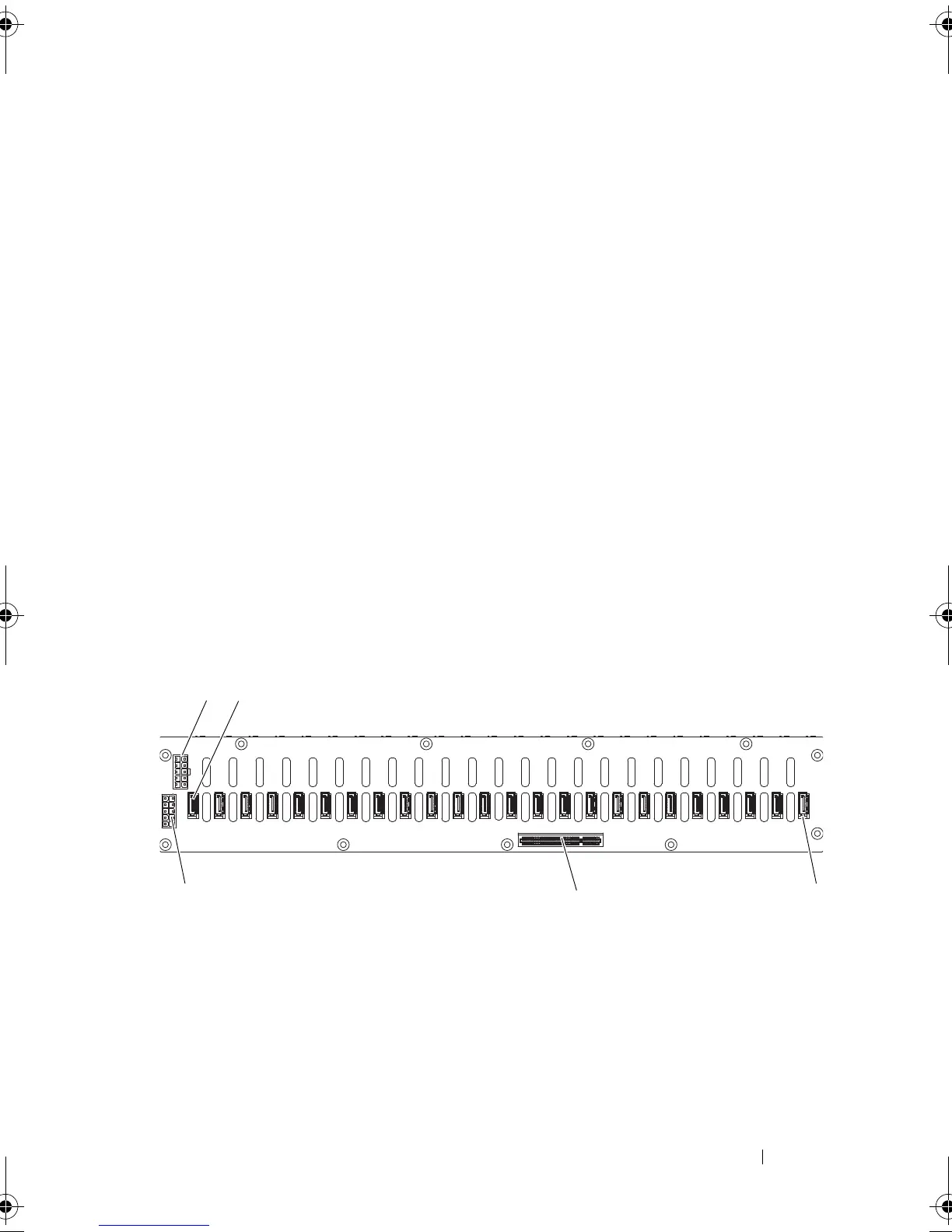

1 power supply connector 2 2 HDD connector number 23-Port 24
3 HDD connector number 0-Port 1 4 PCIEx8 connector
5 power supply connector 1
21
3
4
5
