62 Installing System Components

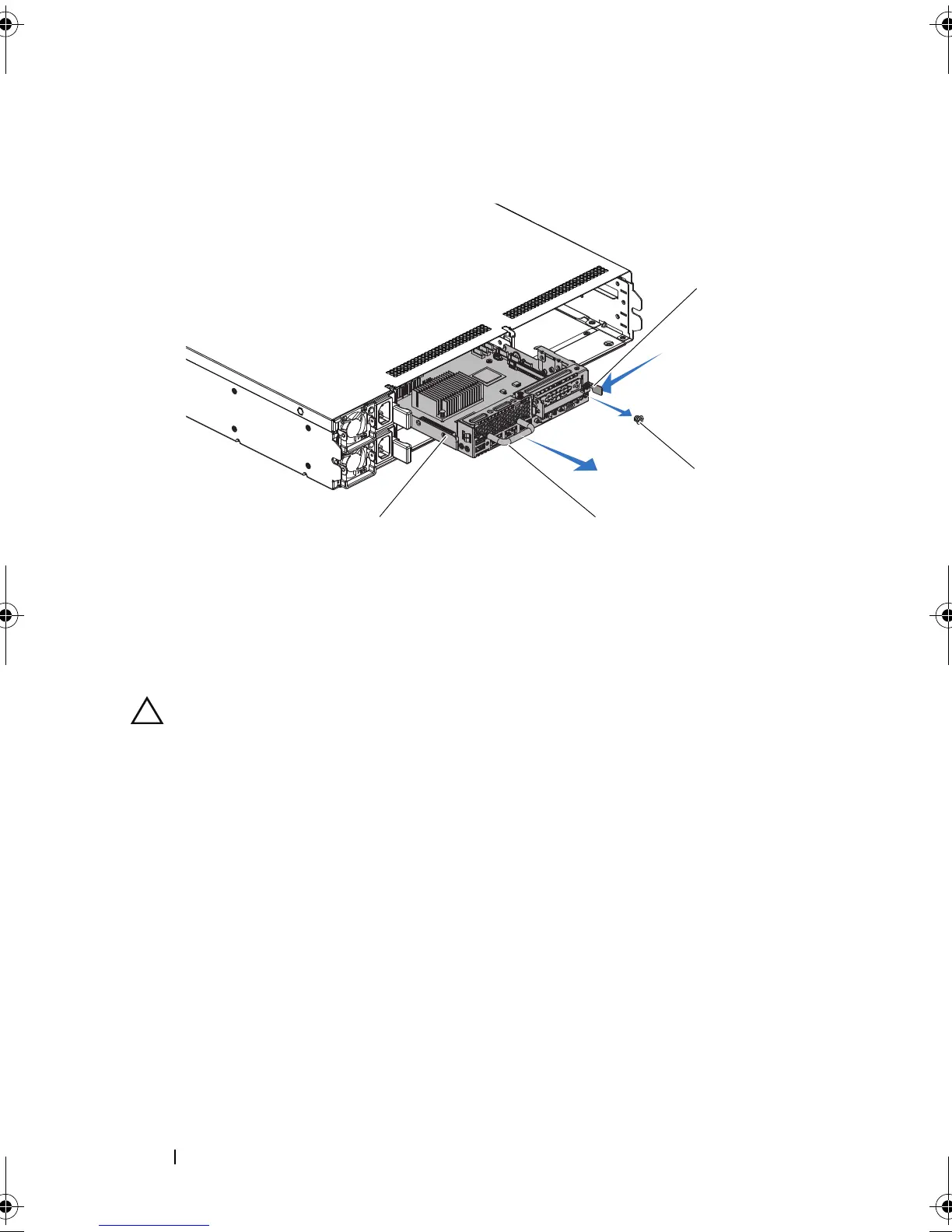

Figure 3-6. Removing and Installing the System-Board Assembly
Installing a System-Board Assembly
CAUTION: Many repairs may only be done by a certified service technician.
You should only perform troubleshooting and simple repairs as authorized in
your product documentation, or as directed by the online or telephone service
and support team. Damage due to servicing that is not authorized by Dell is not
covered by your warranty. Read and follow the safety instructions that came
with the product.
1
Slide the system-board assembly into the chassis until it snaps into place.
See Figure 3-6.
2
Reconnect all the external cables to the system board
3
Replace the screw that secures the retaining latch. See Figure 3-6.
4
Reconnect the system to its electrical outlet and turn on the system,
including any attached peripherals.
1 retaining latch 2 screw
3 handle 4 system-board assembly
