Installing System Components 67
4
Remove the heat sink, see "Removing the Heat Sink" on page 64.
CAUTION: The processor is held in its socket under strong pressure. Be aware
that the release lever can spring up suddenly if not firmly grasped.
5
Position your thumb firmly over the processor socket-release lever and
release the lever from the locked position. Rotate the lever 90 degrees
upward until the processor is released from the socket. See Figure 3-9.
6
Rotate the processor shield upward and out of the way. See Figure 3-9.
7
Lift the processor out of the socket and leave the socket-release lever up so
that the socket is ready for the new processor
CAUTION: Be careful not to bend any of the pins on the ZIF socket when removing
the processor. Bending the pins can permanently damage the system board.

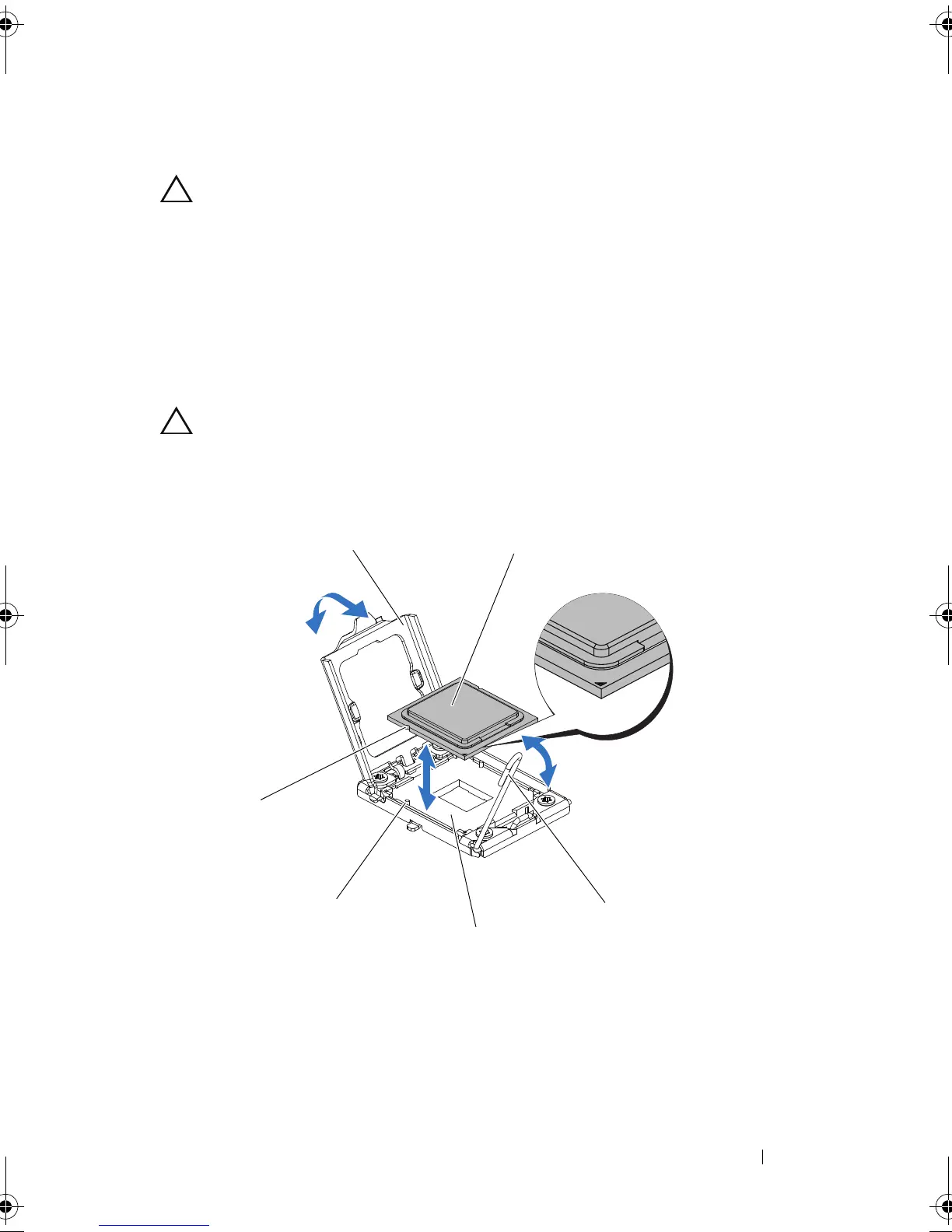

Figure 3-9. Removing and Installing a Processor
1 processor shield 2 processor
3 socket-release lever 4 ZIF socket
5 socket key (2) 6 notch in processor (2)
book.book Page 67 Thursday, March 4, 2010 4:38 PM
