Dell PowerEdge C6220 II Technical Guide

11 PowerEdge C6220 II Technical Guide
2 Chassis views and features
The Dell PowerEdge C6220 II rack server is a 2U rack system that can support one to four
independent server node options. The Power Edge C6220 II chassis is available in three versions:
 One supports 12 x 3.5-inch SAS/SATA drives
 Two support up to 24 x 2.5-inch SAS/SATA drives with a passive or expander backplane
A PowerEdge C6220 II system consists of the PowerEdge C6000 enclosure and an optional
number of compute sleds.
Front panel

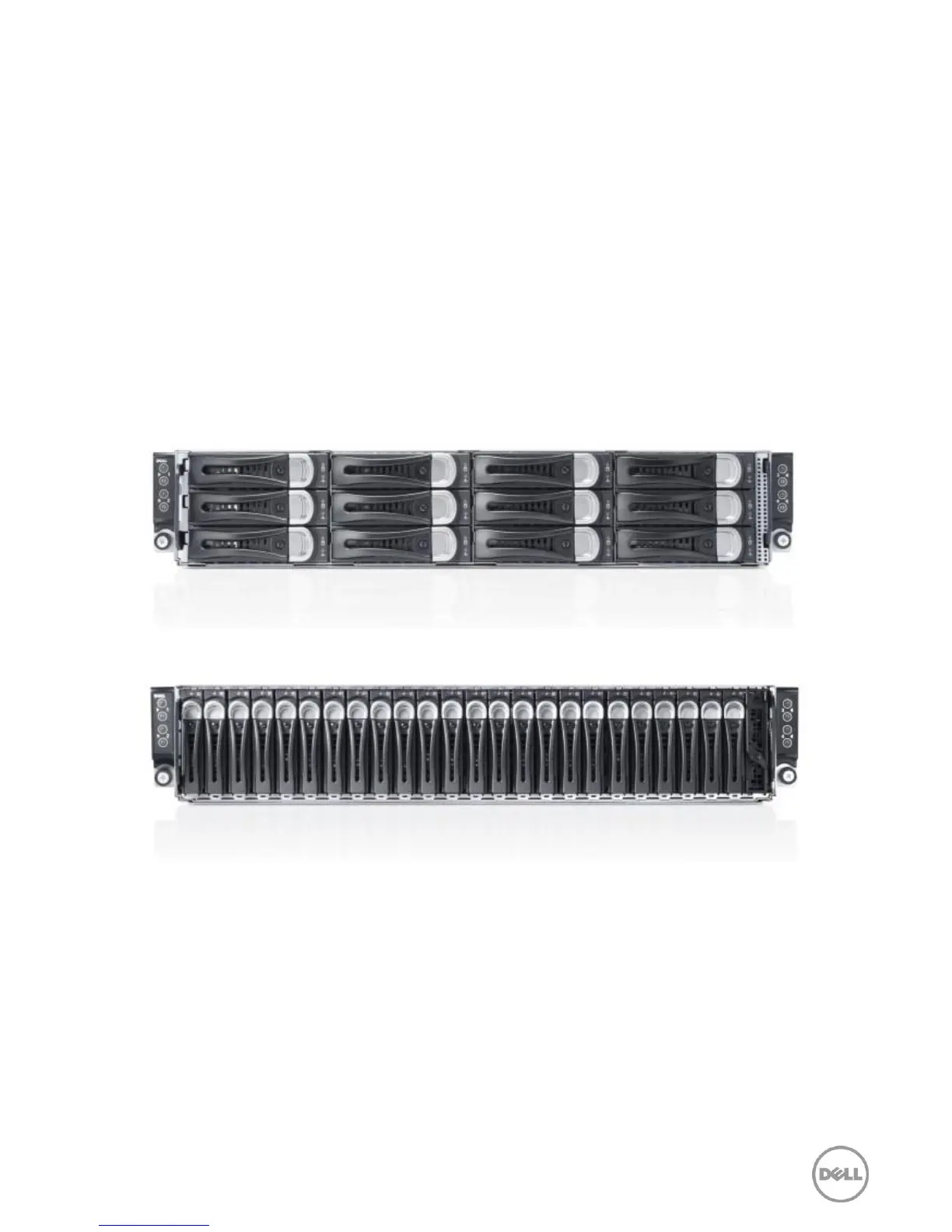

The front panel on the PowerEdge C6220 II chassis, as shown in Figure 1 and Figure 2, contains the
power buttons and LEDs for each server node, and it contains the hard drive bays and LEDs.
Figure 1. 3.5-inch chassis
Figure 2. 2.5-inch chassis
Back panel
The fans, power supplies and connectors (USB, NIC, serial and Ethernet) are on the back panel of the
PowerEdge C6220 II chassis, as shown in Figure 3.

Dell PowerEdge C6220 II Specifications

General

Form Factor	2U Rack
Processor	Intel Xeon E5-2600 v2 series
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
Memory	Up to 512GB DDR3 per node
Storage	Up to 24 x 2.5" hot-plug SAS, SATA, or SSD drives
Network	Dual 1GbE, optional 10GbE
Management	Dell Remote Access Controller (iDRAC7) with Lifecycle Controller
Number of Processors	Up to 2 per node (4 total in 2U chassis)
Power Supply	Redundant hot-plug power supplies
