Dell PowerEdge C6220 II Technical Guide

14 PowerEdge C6220 II Technical Guide

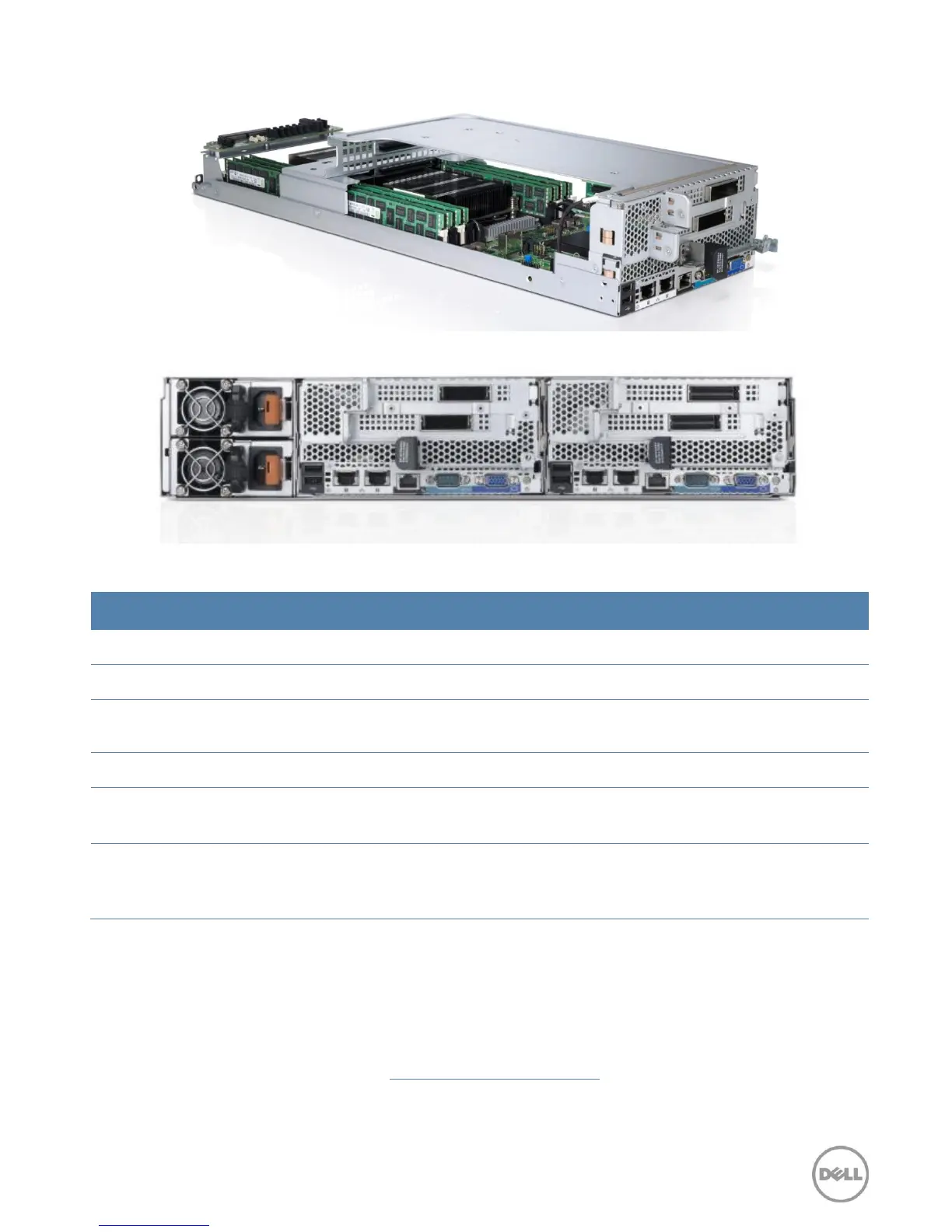

Figure 7. 2U sled — side view
Figure 8. 2U sled — back view
Table 5. PowerEdge C6220 II 1U and 2U sled features and comparisons
The PowerEdge C6220 II chassis is available with multiple drive size and backplane options. The
base chassis remains the same, but installed backplanes determine drive size and capability. The
number of drives per sled depends on the number of compute sleds installed as well as the
backplane selected.
For additional information on PowerEdge C6220 II backplanes, see the Dell PowerEdge C6220 II
Systems Hardware Owner’s Manual on Dell.com/Support/Manuals.
Category
1U sled
2U sled
Height
1 rack unit (1.75 inches)
2 rack units (3.5 inches)
Number of system boards
1
1
Maximum number of sleds
in a C6000 chassis
4
2
Custom mezzanine slots
1 x8 PCIe 3.0
1 x8 PCIe 3.0
PCIe slots
1 x16 PCIe 3.0, low profile, half length
1 x16 PCIe 3.0, full height, half length
1 x16 PCIe 3.0, full height, full length
Midplane connections
1 midplane connection:
power, control, 6 SATA/SAS
2 midplane connections:
bottom = power, control, 4 SATA/SAS
top = 4 SATA/SAS

Dell PowerEdge C6220 II Specifications

General

Form Factor	2U Rack
Processor	Intel Xeon E5-2600 v2 series
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
Memory	Up to 512GB DDR3 per node
Storage	Up to 24 x 2.5" hot-plug SAS, SATA, or SSD drives
Network	Dual 1GbE, optional 10GbE
Management	Dell Remote Access Controller (iDRAC7) with Lifecycle Controller
Number of Processors	Up to 2 per node (4 total in 2U chassis)
Power Supply	Redundant hot-plug power supplies
