13 PowerEdge C6220 II Technical Guide
Compute sled options
The PowerEdge C6220 II has two different sled form factors — 1U and 2U.
 The 1U sled has a single x8 mezzanine slot and a single x16 PCIe slot. The x16 PCIe slot uses a 1U
riser. This riser, which includes the microSD card reader and was default on every sled for the
C6220 server, is optional for the C6220 II. This riser also has the microSD card reader.
 The 2U sled has a single x8 mezzanine slot and two x16 PCIe slots. Each x16 PCIe slot uses a
different riser. One slot has the 1.5U riser for a full height, half-length add-in card. The other slot
has a 2U riser for the full height, full length add-in card. Every 2U sled ships with both risers by
default.
The PowerEdge C6220 II offers a cost-effective, flexible solution for ordering a system that is not
fully loaded. This option is for customers who want to start with one or two nodes and add more as
needed, and for customers who want to have a dedicated server for servicing tasks.

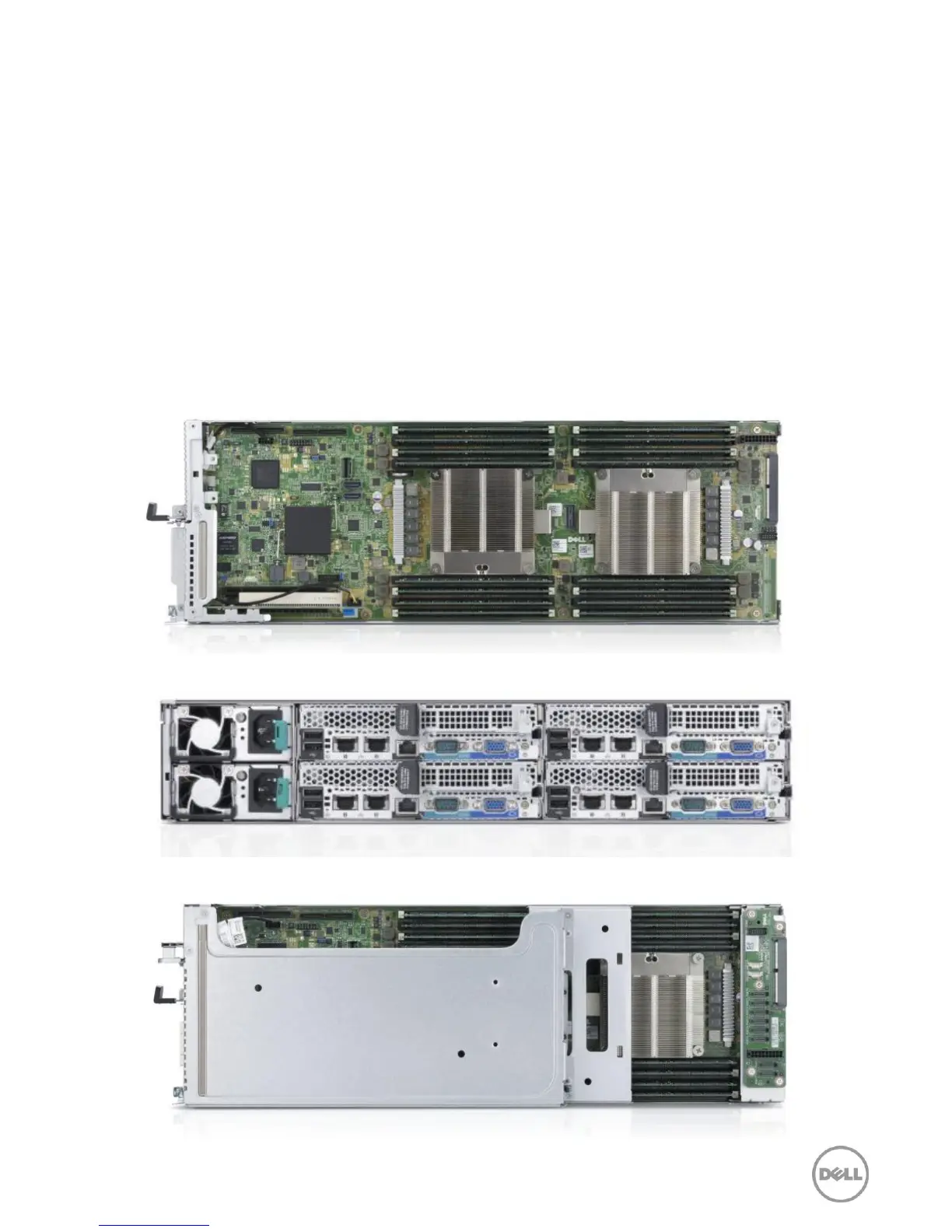

Figure 4. 1U sled — top view
Figure 5. 1U sled — back view
Figure 6. 2U sled — top view
