Installing System Components 55

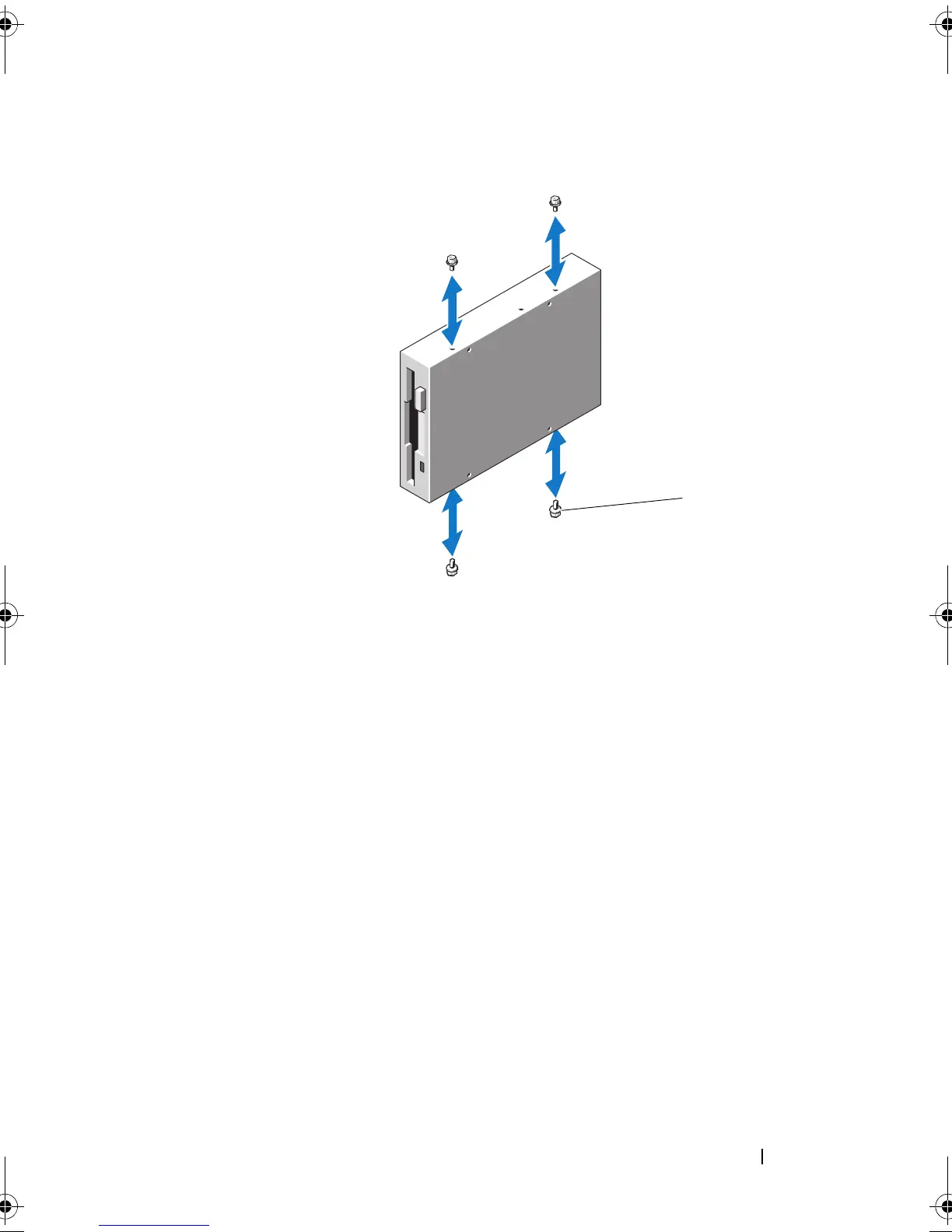

Figure 3-7. Installing Diskette Drive Shoulder Screws
9
From the front of the chassis, slide the drive into the drive bay until the
shoulder screws fit into their slots and snap securely into the sliding plate.
10
Connect the power cable to the drive. See Figure 3-6.
11
Connect the data cable from the drive to the diskette drive connector
(FLOPPY) on the system board. See Figure 3-8 and Figure 6-2.
1 screws (4)
