Installing System Components 61
5
If another drive is installed, remove it (see "Removing an Optical or Tape
Drive" on page 57) and remove the three shoulder screws to attach to the
new drive (see Figure 3-11).
6
If the drive bay is empty, remove the insert on the front drive bezel. See
"Removing an Insert on the Front Drive Bezel" on page 50.
7
Remove the three shoulder screws from the insert, and attach one of them
to the row of holes and two to the bottom row of holes on the drive. See
Figure 3-11.

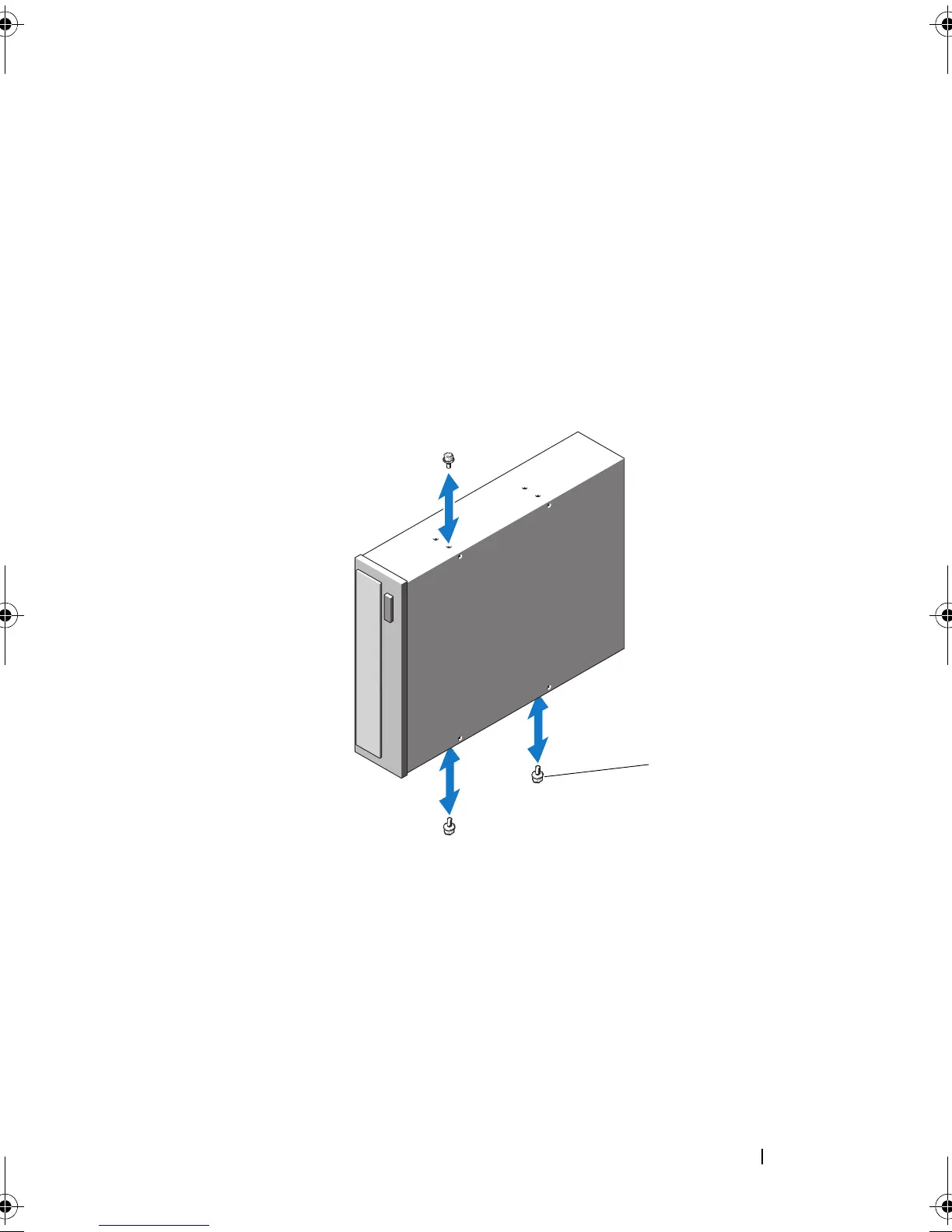

Figure 3-11. Installing Optical or Tape Drive Shoulder Screws
8
Gently slide the drive into place until you hear a click or feel the drive
securely installed.
9
Attach the SCSI power cable (see Figure 3-12) or SATA power cable (see
Figure 3-13) to the drive. Ensure that cables are secured in their respective
clips.
1 screws (3)
1
