Installing System Components 63

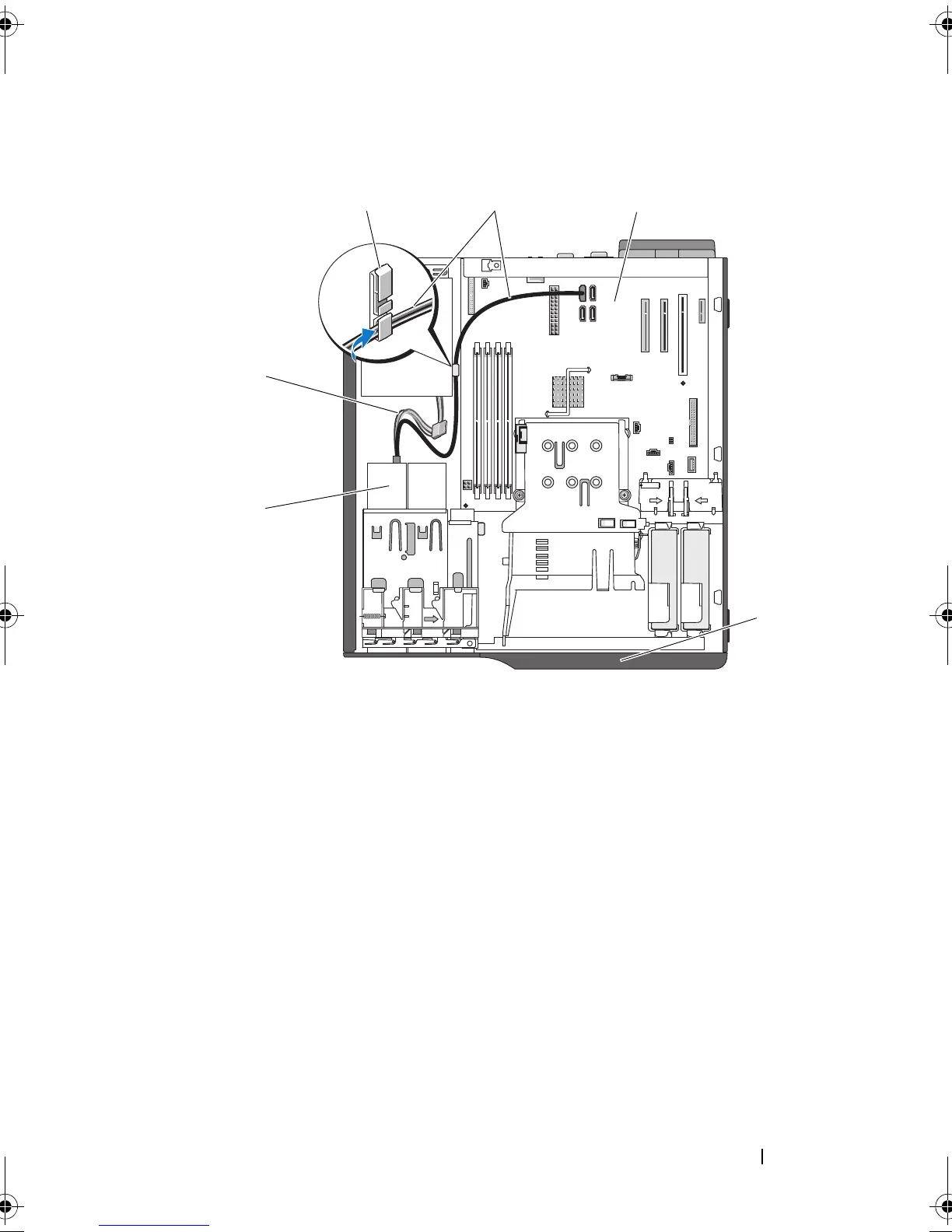

Figure 3-13. Cabling a SATA Controller to the Optical Disk Drive
10
Attach the data cable. If you are installing a SCSI tape drive, connect the
SCSI interface cable in the drive kit from the SCSI controller card to the
drive. See Figure 3-12.
11
Check all cable connections, and fold cables out of the way to allow for
airflow between the fan and cooling vents.
12
Replace the front drive bezel. See "Replacing the Front Drive Bezel" on
page 49.
13
Close the system. See "Closing the System" on page 47.
14
Reconnect the system to the electrical outlet, and turn on the system and
attached peripherals.
1 system board 2 front drive bezel
3 optical disk drive 4 SATA power cable
5 cable clip 6 SATA optical disk cable
