68 Installing System Components
• For connection to a SAS controller expansion card (SAS or SATA hard
drives), connect the data cable from the SAS controller card and the
power cable as shown in Figure 3-17.
See "SAS Controller Expansion
Card
" on page 74
for instructions about installing the card and
routing the cables.

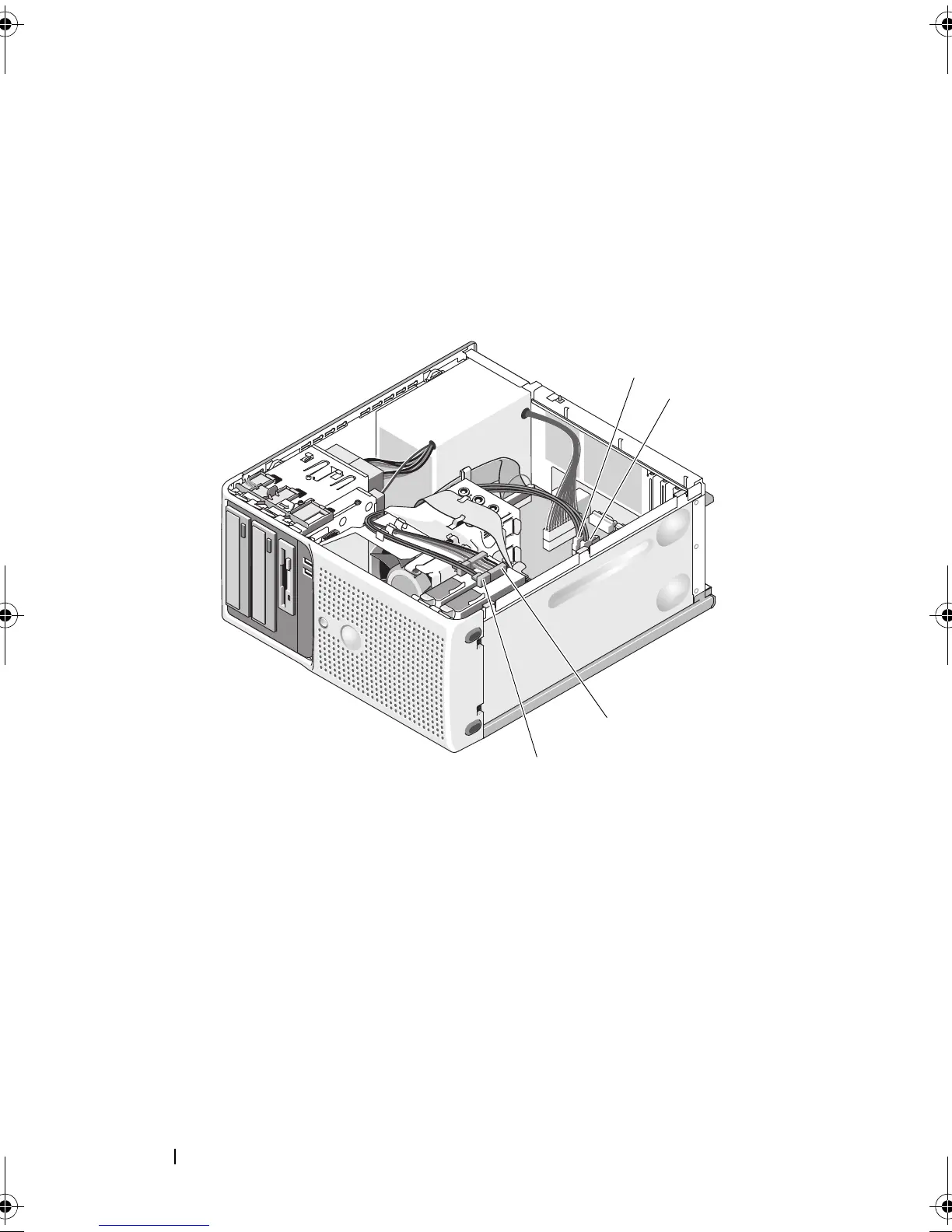

Figure 3-16. Cabling a SATA Hard Drive to the Integrated SATA Controller
1 SATA_B data cable to system board 2 SATA_A data cable to system board
3 power cable to hard drive 4 SATA data cable to hard drive
book.book Page 68 Wednesday, June 24, 2009 8:21 AM
