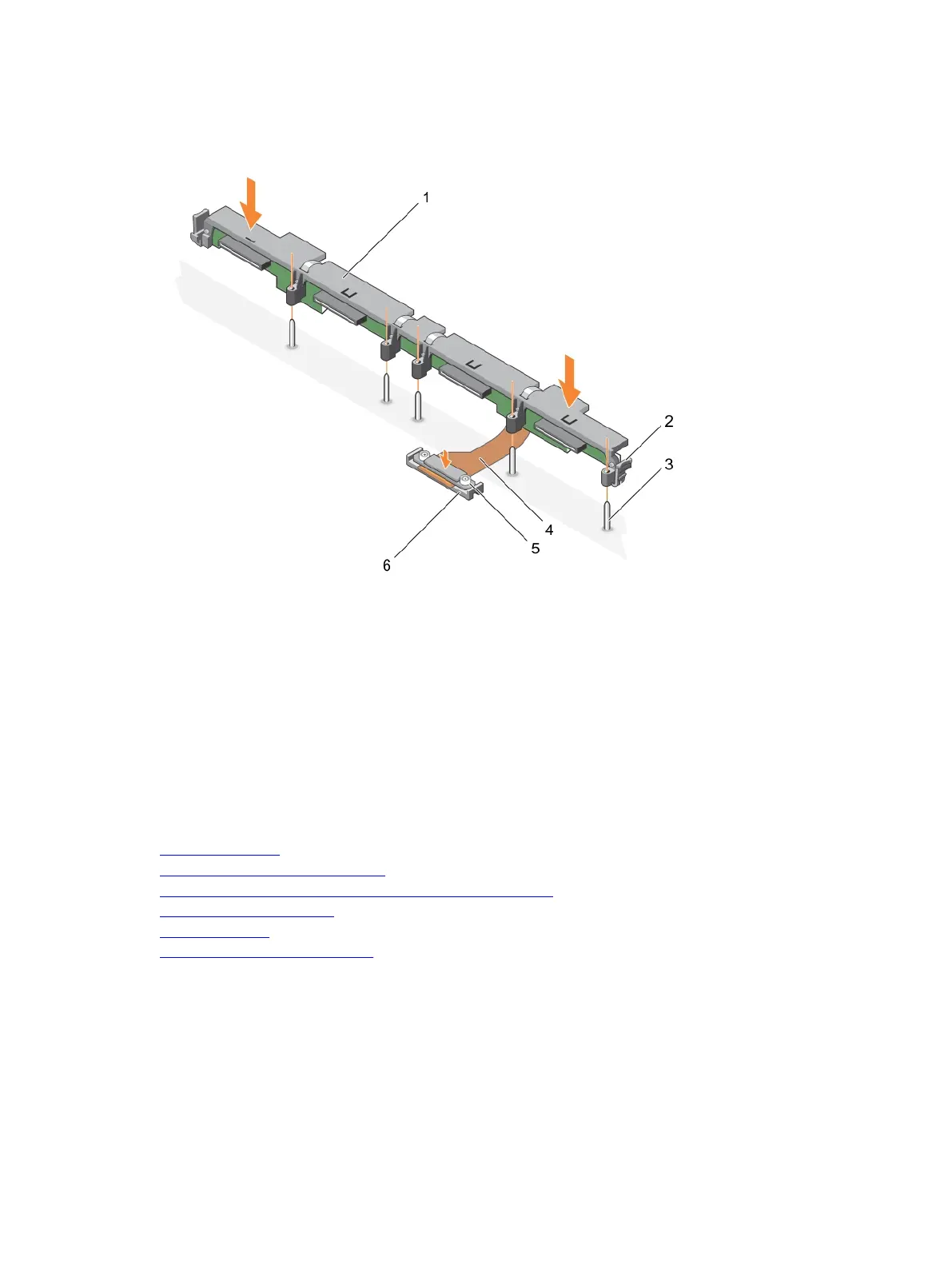

Figure 57. Installing a 2.5-inch (x4) SATA hard-drive or SSD backplane
1. hard-drive or SSD backplane 2. release latch (2)
3. guide pin (5) 4. hard-drive or SSD backplane cable
5. retention screw on the hard-drive or SSD
backplane cable connector (2)
6. connector
Next steps
1. Install the hard drives or SSDs in their original locations.
2. Follow the procedure listed in the After working inside your system section.
Related Links
Safety instructions
Before working inside your system
Removing a 2.5-inch (x4) SATA hard-drive or SSD backplane
Installing the system cover
Installing a blade
After working inside your system
