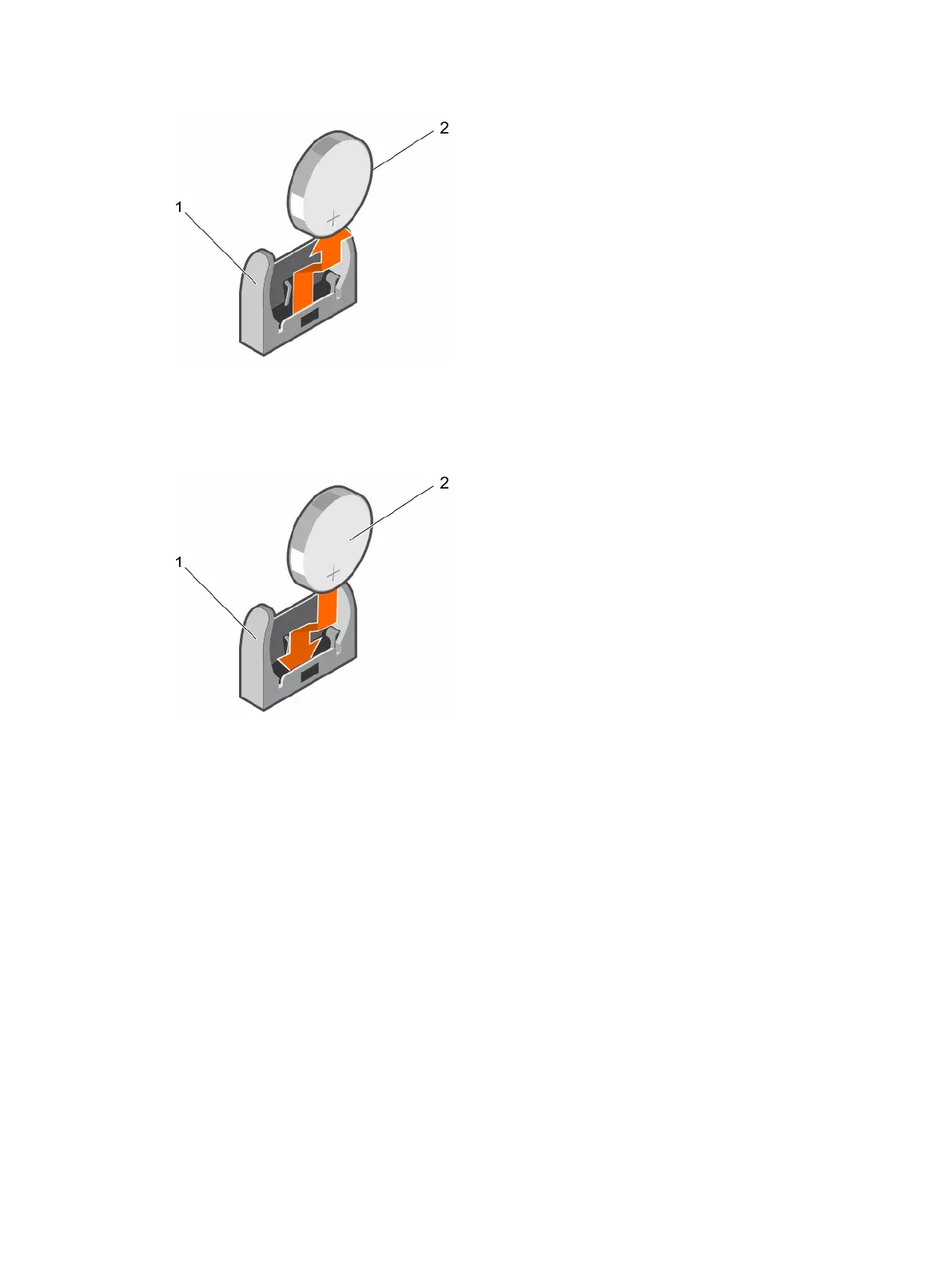

Figure 62. Removing the NVRAM backup battery
1. negative side of battery connector 2. positive side of battery
4. To install a new system battery, hold the battery with the negative side of battery facing the negative
side of the battery connector.
Figure 63. Installing the NVRAM backup battery
1. negative side of battery connector 2. positive side of battery
5. Place the battery into the connector and push the positive side of the battery until the battery snaps
into place.
Next steps
1. If applicable, install the memory module.
2. Install the following:
a. hard drives or SSDs
b. hard-drive backplane or SSD backplane
c. hard-drive cage or SSD cage
3. Follow the procedure listed in the After working inside your system section.
4. Enter System Setup to confirm that the battery is operating properly.
5. Enter the correct time and date in the System Setup Time and Date fields.
6. Exit System Setup.
138
