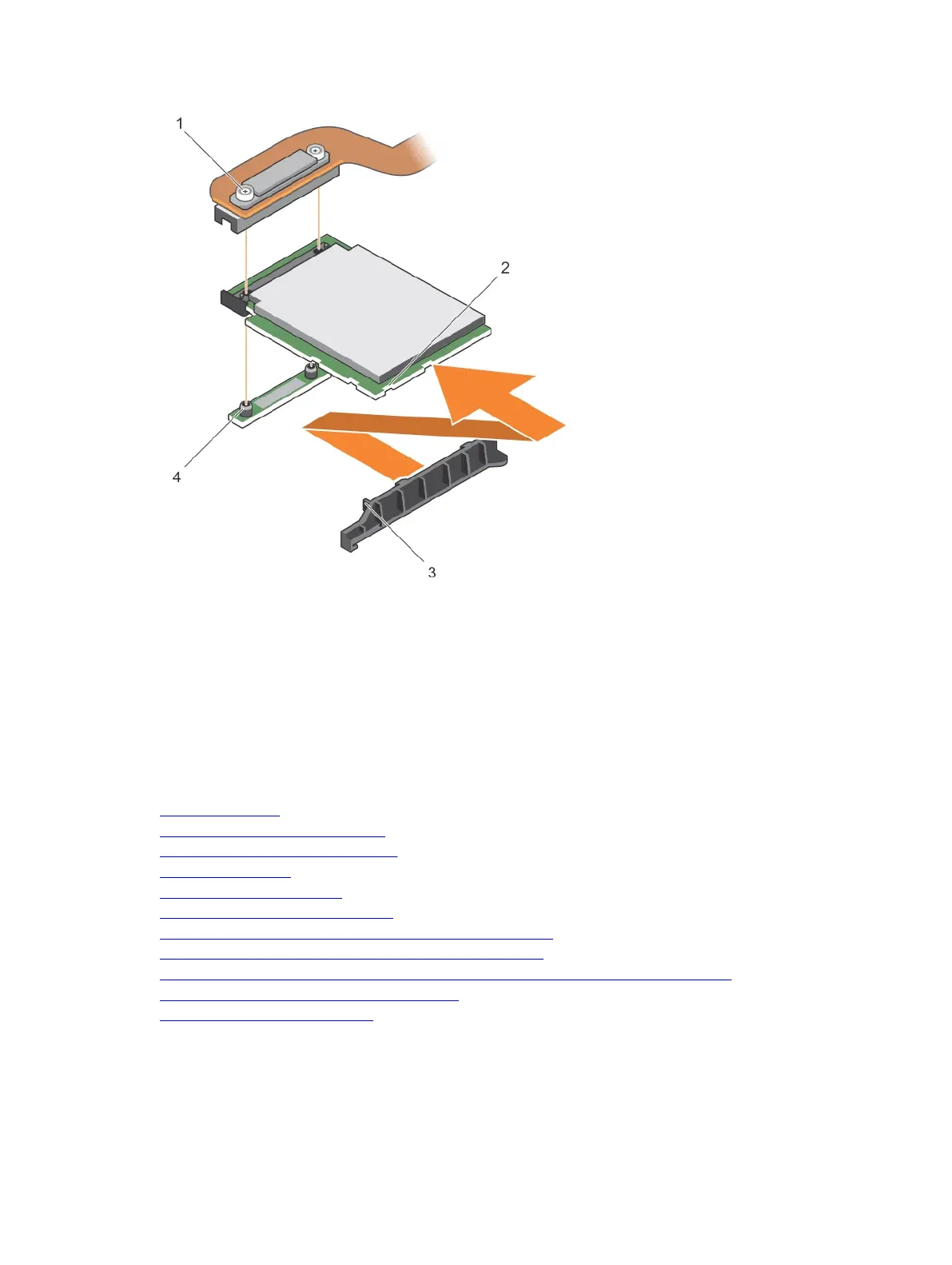

Figure 64. Removing the storage controller card
1. retention screw (2) 2. slot on the storage controller card
3. tab on the storage controller card support
bracket
4. standoff (2)
Next steps
1. Install the storage controller card.
2. Follow the procedure listed in the After working inside your system section.
Related Links
Safety instructions
Before working inside your system
Installing the storage controller card
Removing the blade
Removing the system cover
Removing a hard-drive or SSD cage
Removing a 2.5-inch (x4) SATA hard-drive or SSD backplane
Removing a 2.5-inch (x4) SAS hard-drive or SSD backplane
Removing a 2.5-inch (x2) SATA hard drive or SSD plus 2.5-inch (x2) PCIe SSD backplane
Removing a 1.8-inch (x12) SAS SSD backplane
