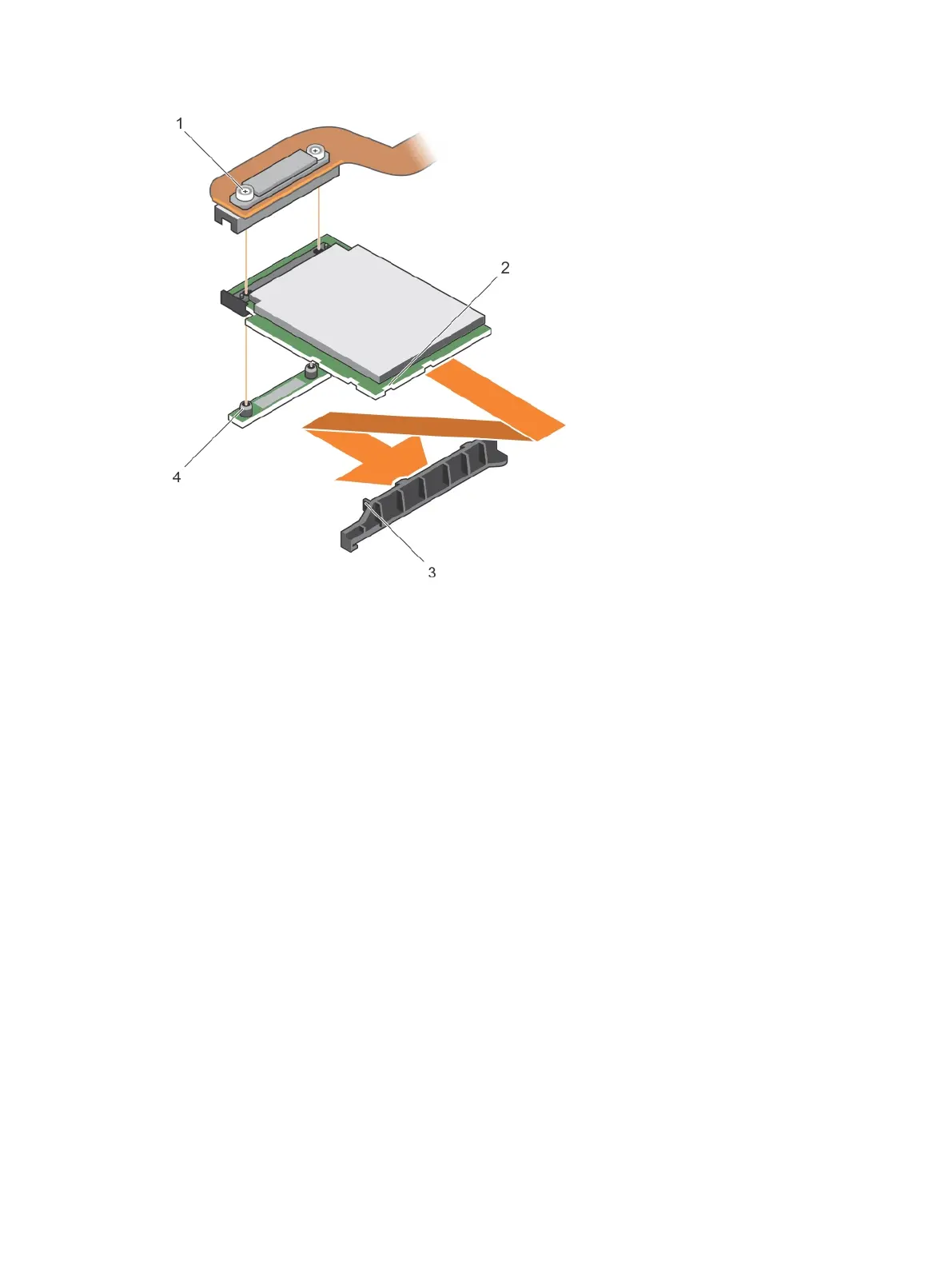

Figure 65. Installing the storage controller card
1. retention screw (2) 2. slot on the PCIe extender or storage
controller card
3. tab on the PCIe extender or storage
controller card support bracket
4. standoff (2)
Next steps
1. Install the following:
a. hard drives or SSDs
b. hard-drive backplane or SSD backplane
c. hard-drive cage or SSD cage
2. Follow the procedure listed in the After working inside your system section.
