Steps
1. Remove the screw that secures the mezzanine card support bracket to the system board.
2. Orient the mezzanine card support bracket upward and slide it until the tabs on the mezzanine card
support bracket disengage from the slots on the system.
3. Lift the mezzanine card support bracket away from the system.

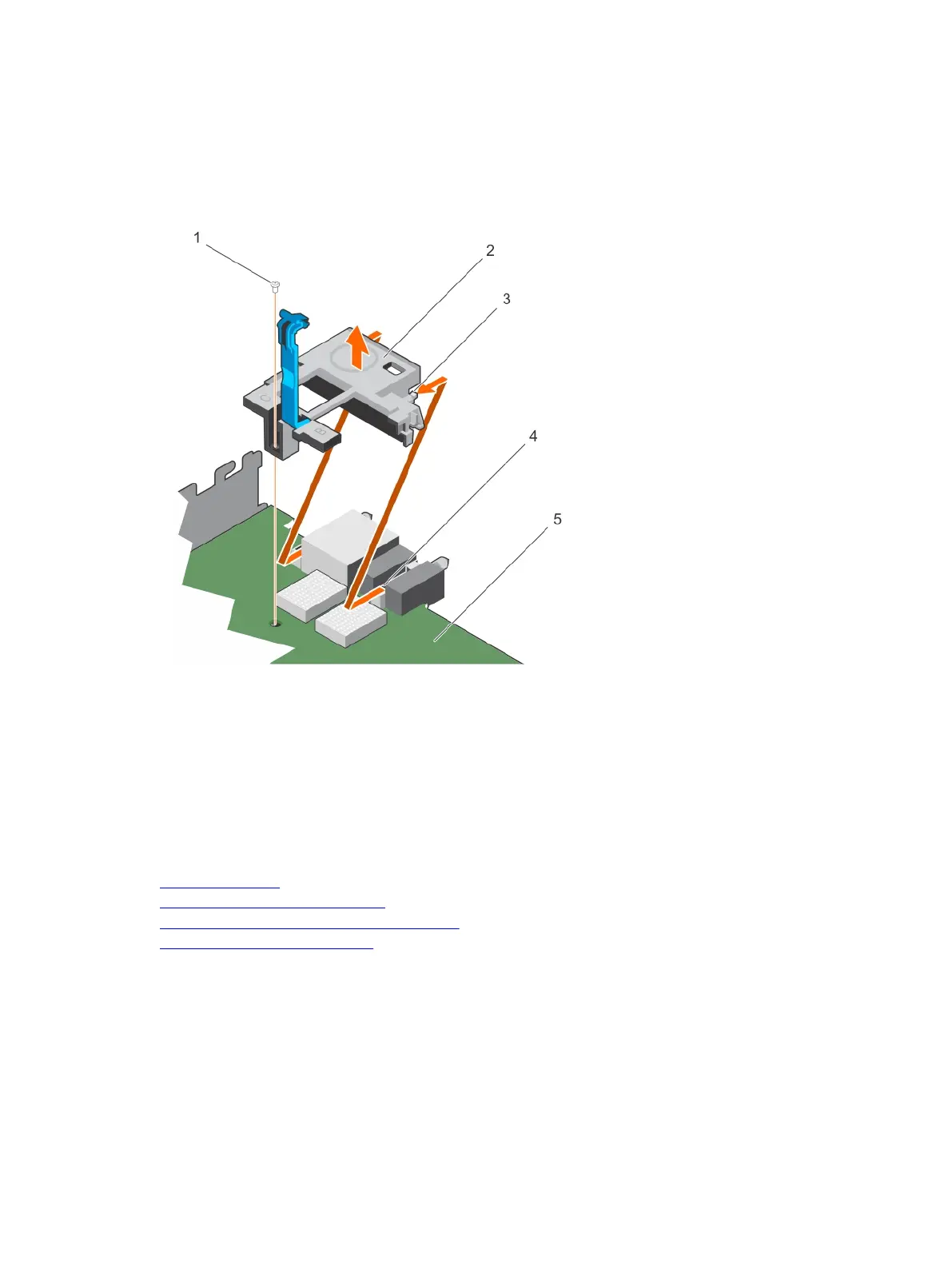

Figure 18. Removing the
mezzanine card support bracket
1. screw 2. mezzanine card support bracket
3. tab on the bracket (2) 4. slot on the system (2)
5. system board
Next steps
1. Follow the procedure listed in the After working inside your system section.
Related Links
Safety instructions
Before working inside your system
Installing the mezzanine card support bracket
After working inside your system
