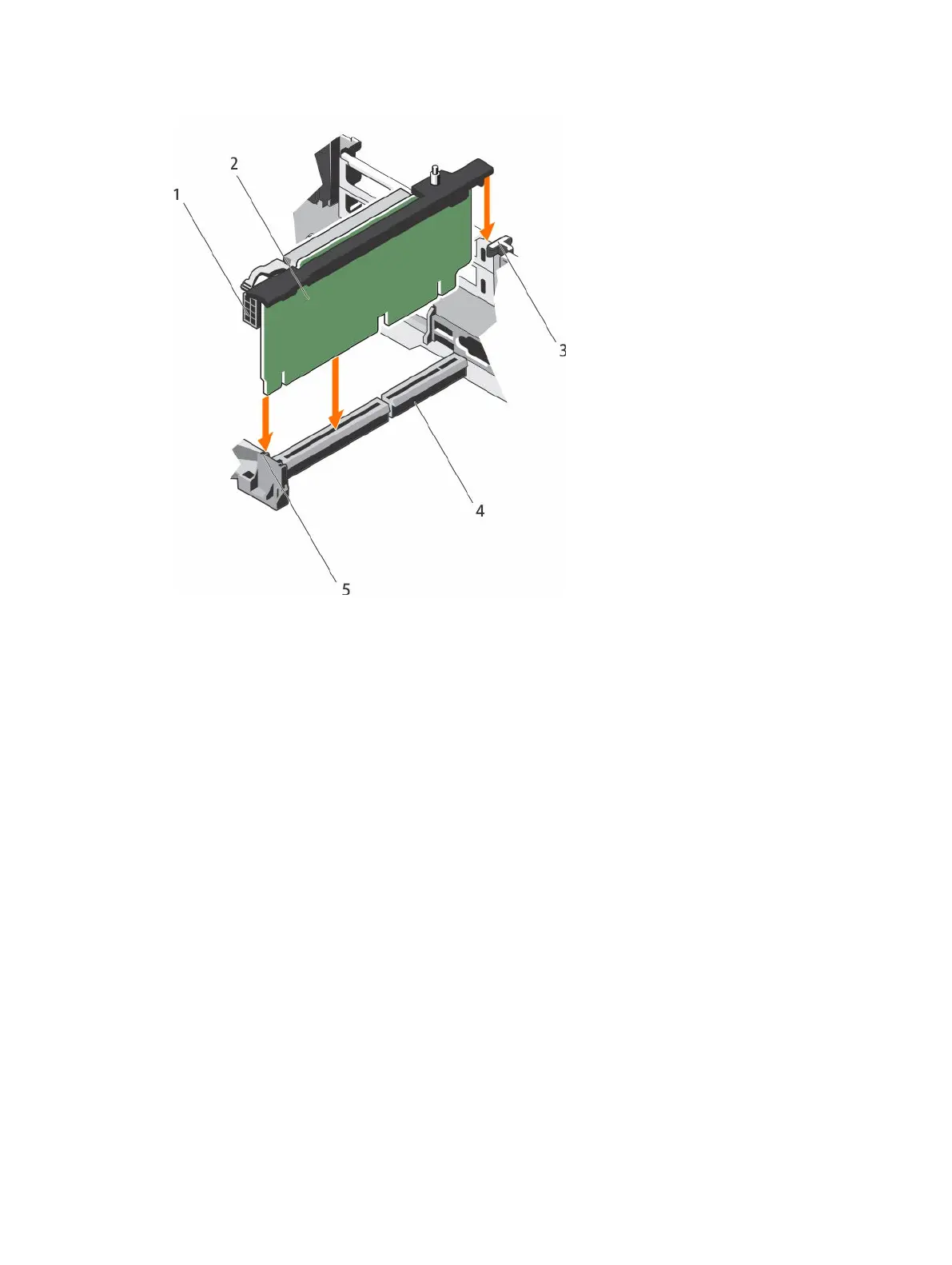

Figure 66. Installing the expansion card riser 2
1. power connector (for GPU cards) 2. expansion card riser 2
3. riser guide-back 4. expansion card riser 2 connector
5. riser guide-front
144
