Dell PowerEdge R730xd - Installing the Optional Hard Drive Backplane (Rear)

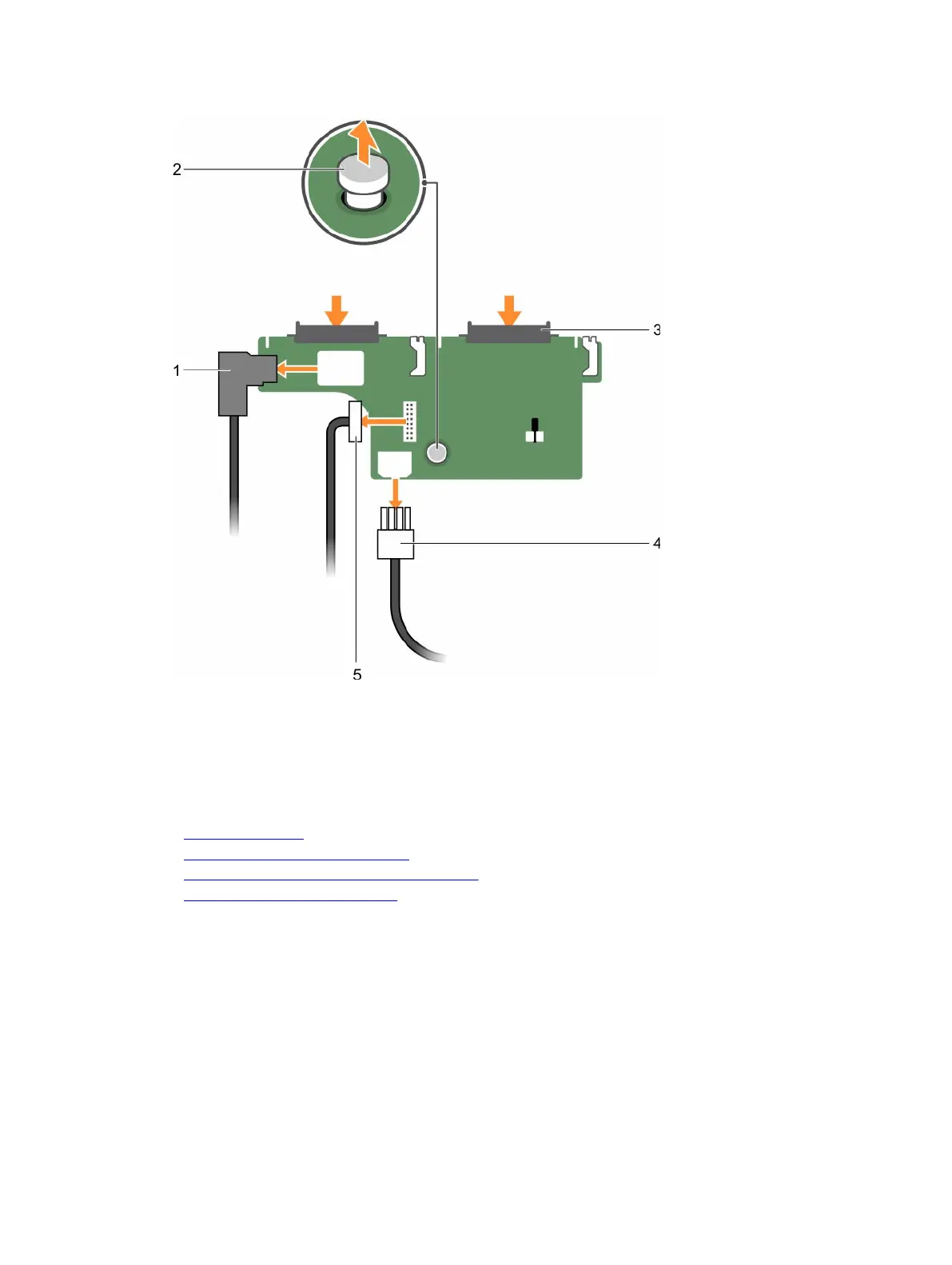

Figure 117. Removing the optional 2.5 inch (x2) hard drive backplane
1. SAS cable 2. release pin
3. hard drive connector (2) 4. power cable
5. backplane signal cable
Related Links
Safety instructions
Before working inside your system
Removing a hot swappable hard drive or SSD
After working inside your system
Installing the optional hard drive backplane (rear)
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions section.
2. Follow the procedure listed in the Before working inside your system section.
205
