Dell PowerEdge R730xd - System Board Jumpers and Connectors

System board jumpers and connectors

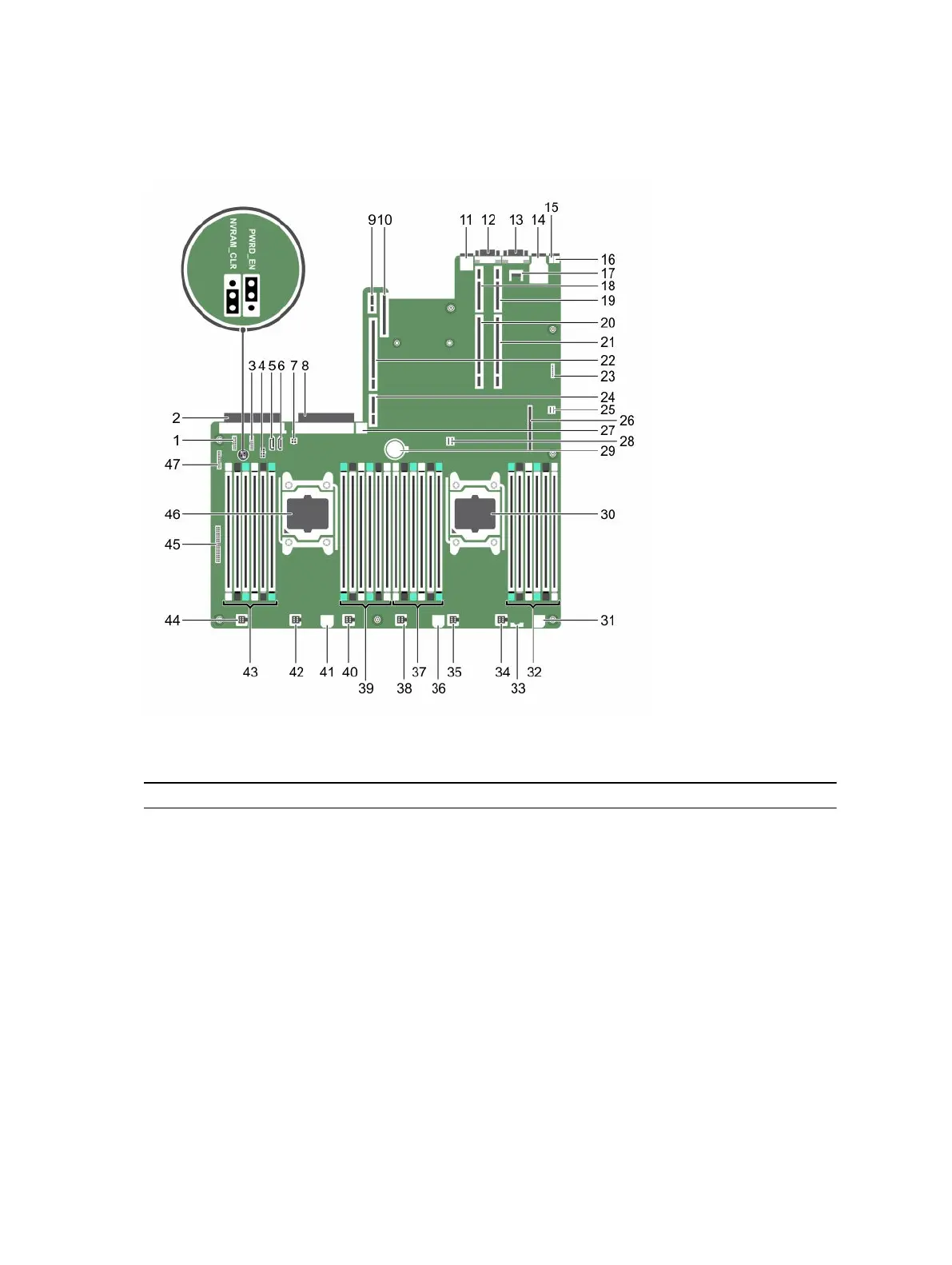

Figure 127. System board jumpers and connectors
Table 45. System board connectors and jumpers
Item Connector Description
1 J_BP_SIG1 Backplane signal connector 1
2 J_PS_2 PSU 2 connector
3 J_BP_SIG0 Backplane signal connector 0
4 J_BP0 Backplane power connector 0
5 J_SATA_CD Optical drive SATA connector
6 J_SATA_TBU Tape backup unit SATA connector
7 J_TBU Tape backup unit power connector
8 J_PS_1 PSU 1 connector
9 J_IDSDM Internal dual SD module connector
