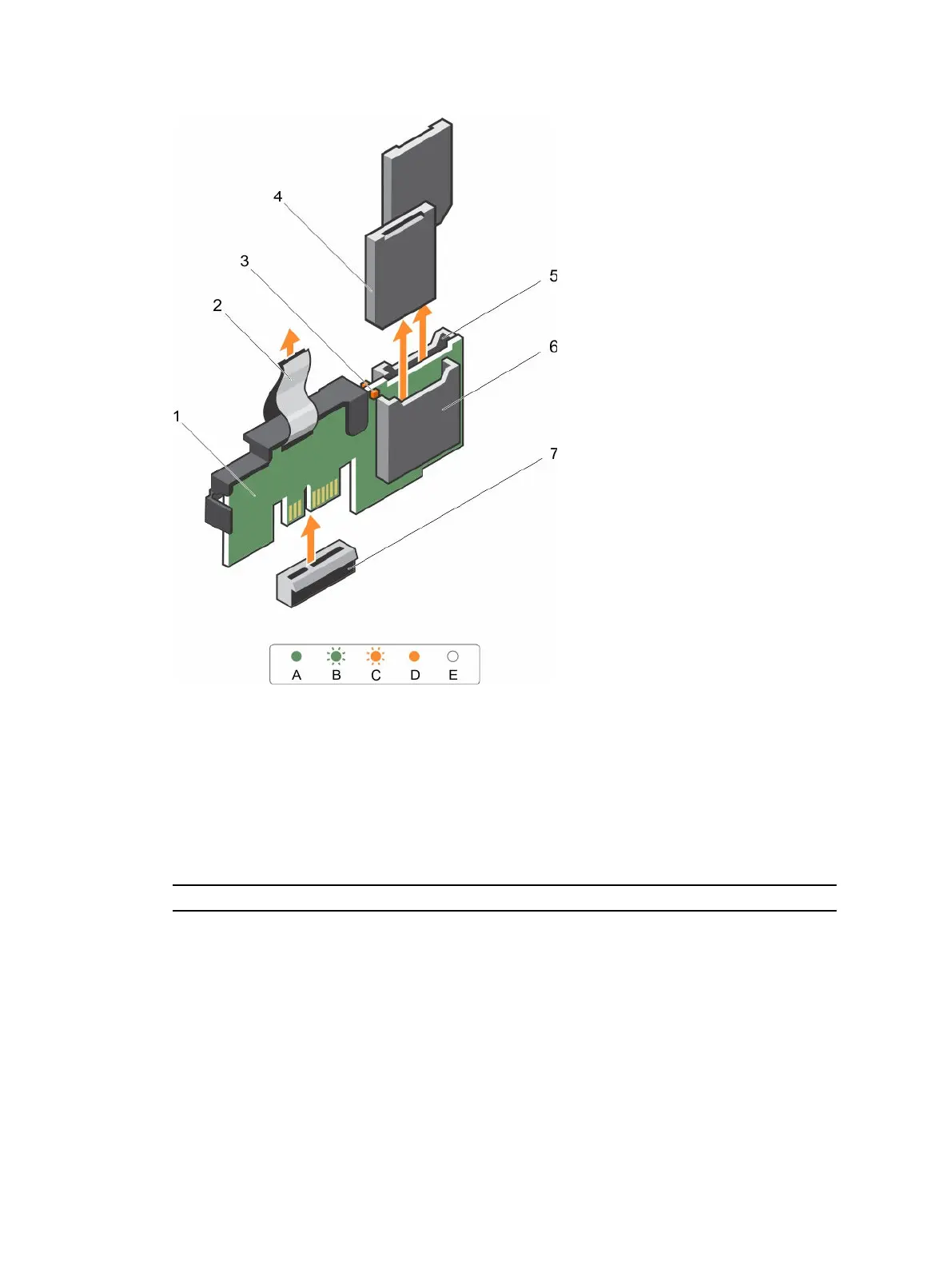

Figure 68. Removing the internal dual SD module (IDSDM)
1. IDSDM 2. pull tab
3. LED status indicator (2) 4. SD card (2)
5. SD card slot 2 6. SD card slot 1
7. IDSDM connector
The following table describes the IDSDM indicator codes:
Table 42. IDSDM indicator codes
Convention IDSDM indicator code Description
A Green Indicates that the card is online.
B Flashing green Indicates rebuild or activity.
C Flashing amber Indicates card mismatch or that the card has
failed.
D Amber Indicates that the card is offline, has failed, or is
write protected.
