2. Follow the procedure listed in the Before working inside your system section.
Steps
1. Lift the release lever on the PEM until the PEM disengages from the chassis.

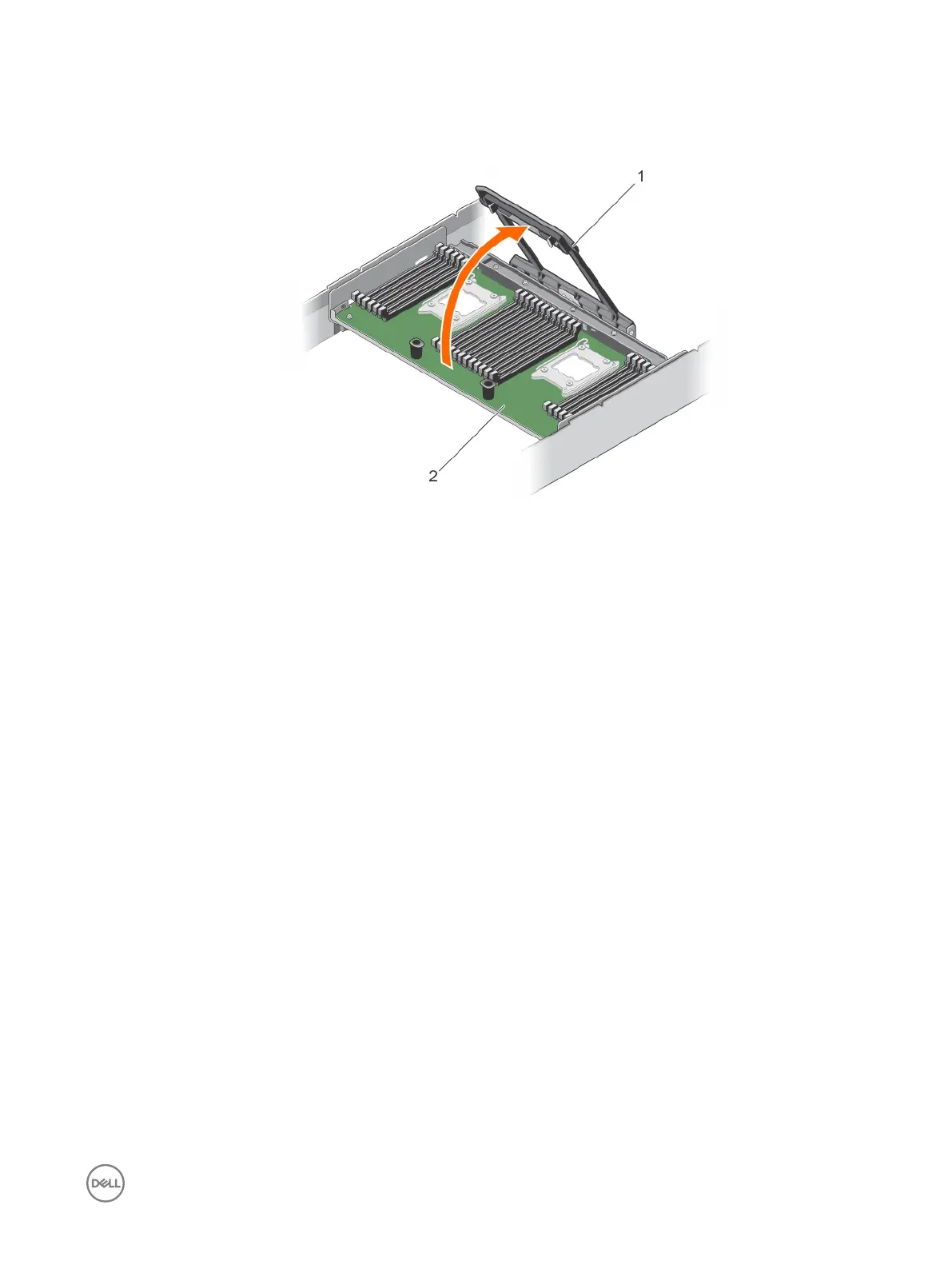

Figure 16. Disengaging the PEM
1.
processor expansion module 2. release lever
2. Holding the release lever and a support pin, lift the PEM away from the chassis.
63
