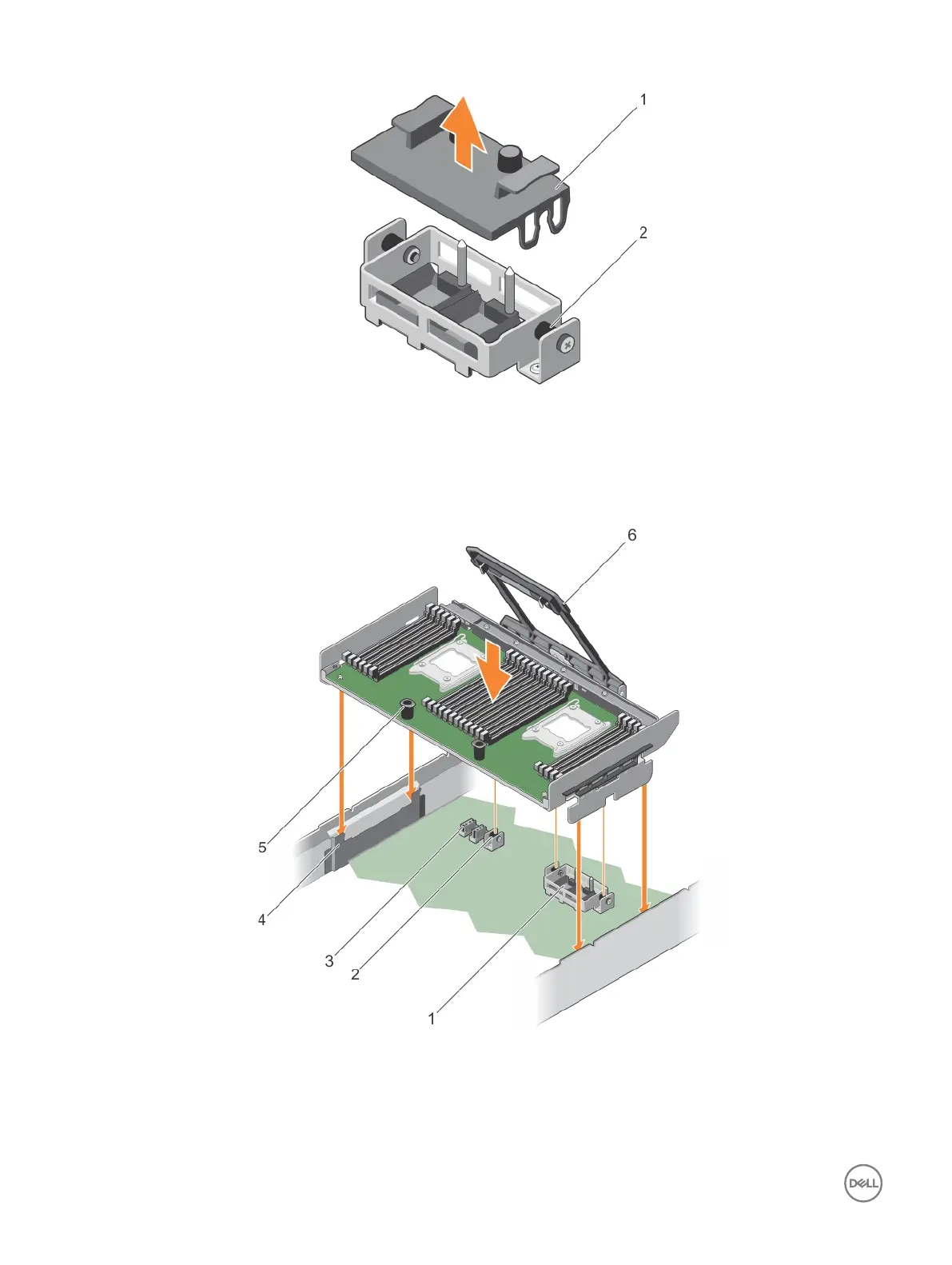

Figure 19. Removing the ller bracket from the QPI connector
1. ller bracket 2. stando (2)
2. If applicable, remove the PEM power connector cap.
3. By holding the support pin and the release lever, align the alignment guides on the PEM with the alignment guides on the
chassis, and lower the PEM into the chassis.
Figure 20. Installing the PEM
1.
QPI connector 2. stando (3)
3. PEM power connector (2) 4. alignment guide (2)
