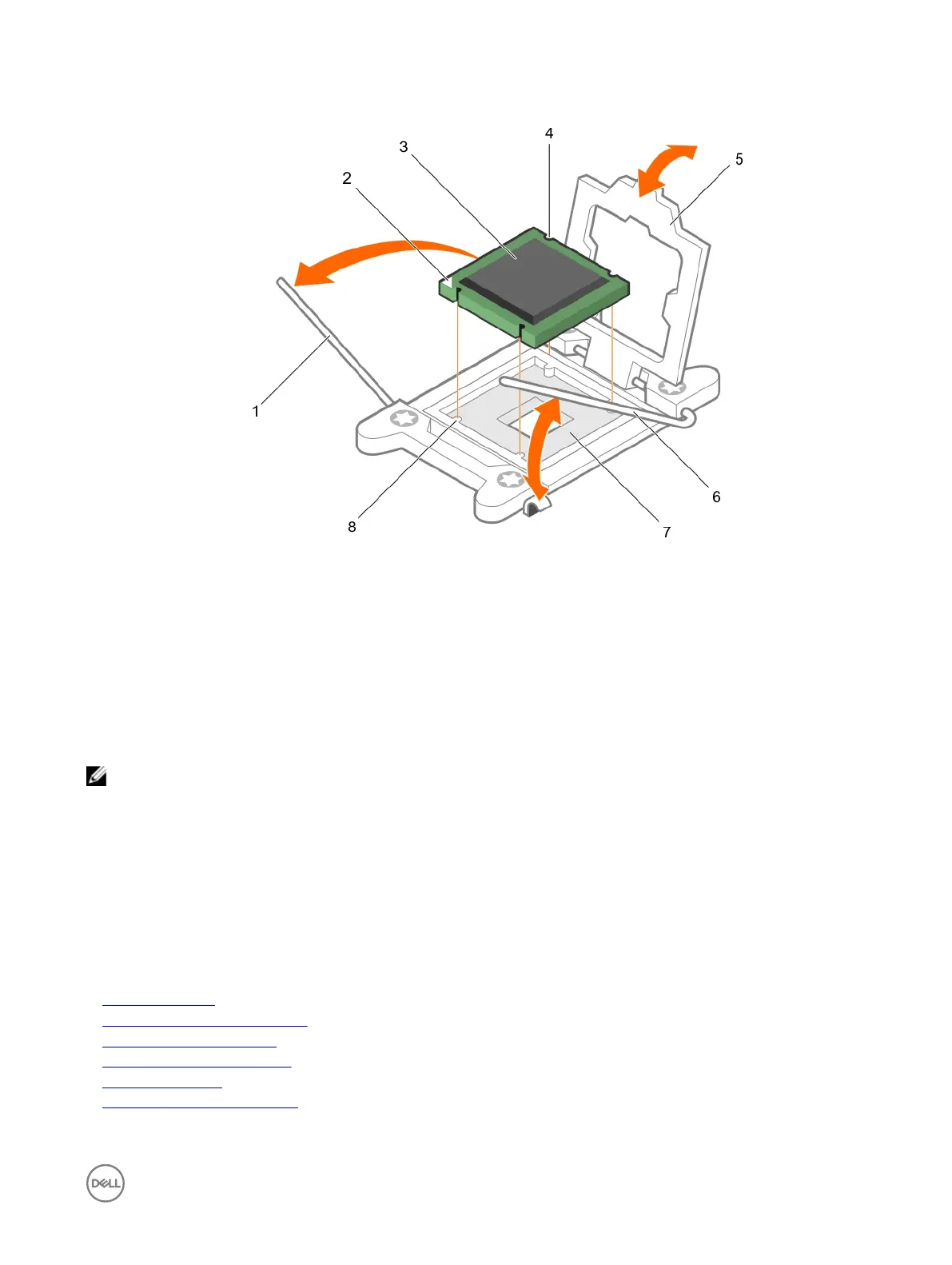

Figure 35. Installing a processor
1.
socket-release lever 1 2. pin–1 corner of the processor
3. processor 4. slot (4)
5. processor shield 6. socket-release lever 2
7. processor socket 8. tab (4)
Next steps
NOTE: Ensure that you install the heat sink after you install the processor. The heat sink is necessary to maintain proper
thermal conditions.
1. Install the heat sink.
2. If removed, reinstall the PCIe expansion card riser.
3. If disconnected, reconnect the cables to the expansion card(s).
4. Follow the procedure listed in the After working inside your system.
5. While booting, press F2 to enter System Setup and verify that the processor information matches the new system
conguration.
6. Run the system diagnostics to verify that the new processor operates correctly.
Related links
Safety instructions
Before working inside your system
Removing the cooling shroud
Removing expansion card risers
Installing a heat sink
After working inside your system
