Dell PowerEdge T320 - Page 53

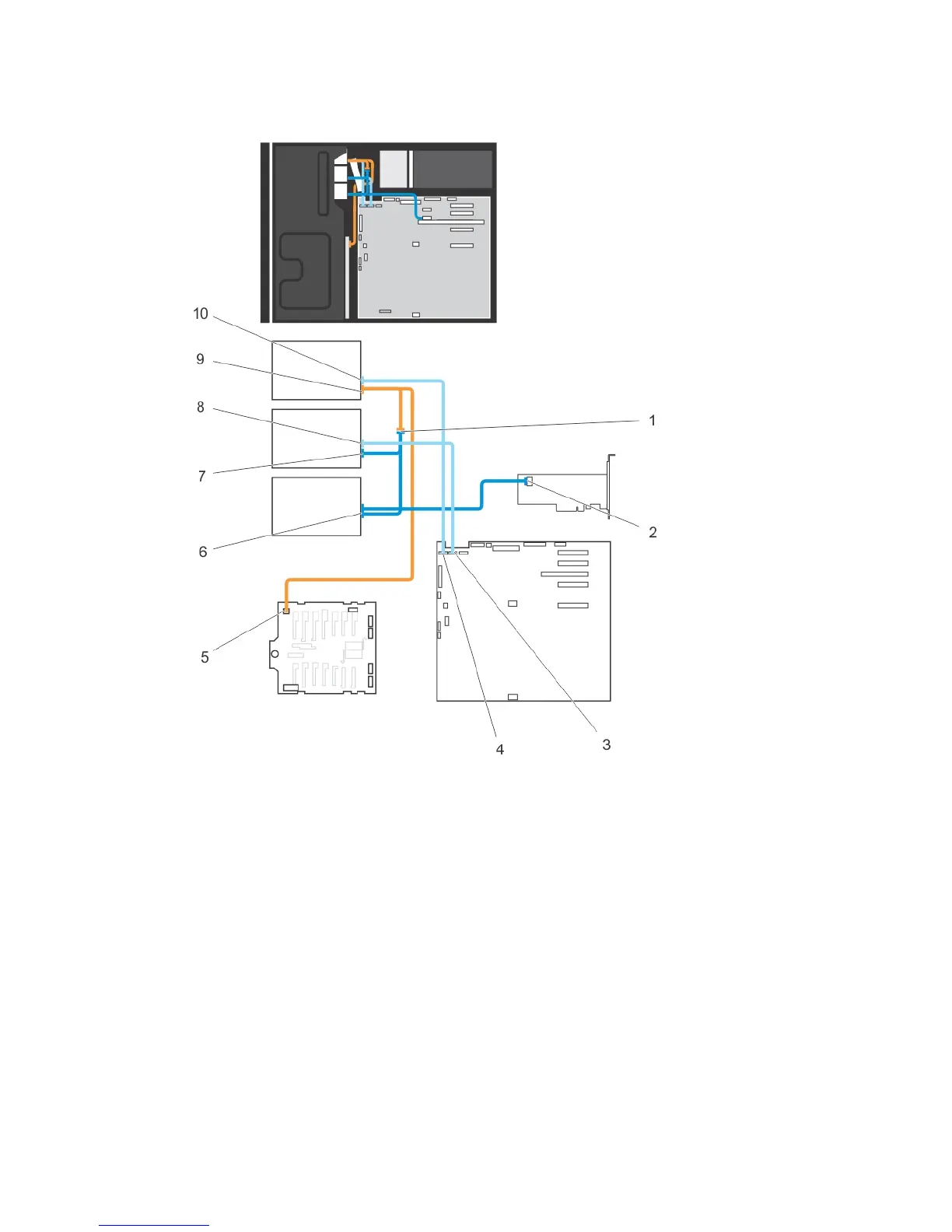

Figure 18. Cabling—Optical Drive and Tape Drive
1. connector for power cable extension
2. mini-SAS connector on PERC card
3. ODD2/TBU connector on system board
4. ODD1/TBU connector on system board
5. power connector on x8 backplane
6. SAS tape drive data/power connector
7. optical drive2 power connector
8. optical drive2 data connector
9. optical drive1 power connector
10. optical drive1 data connector
53
