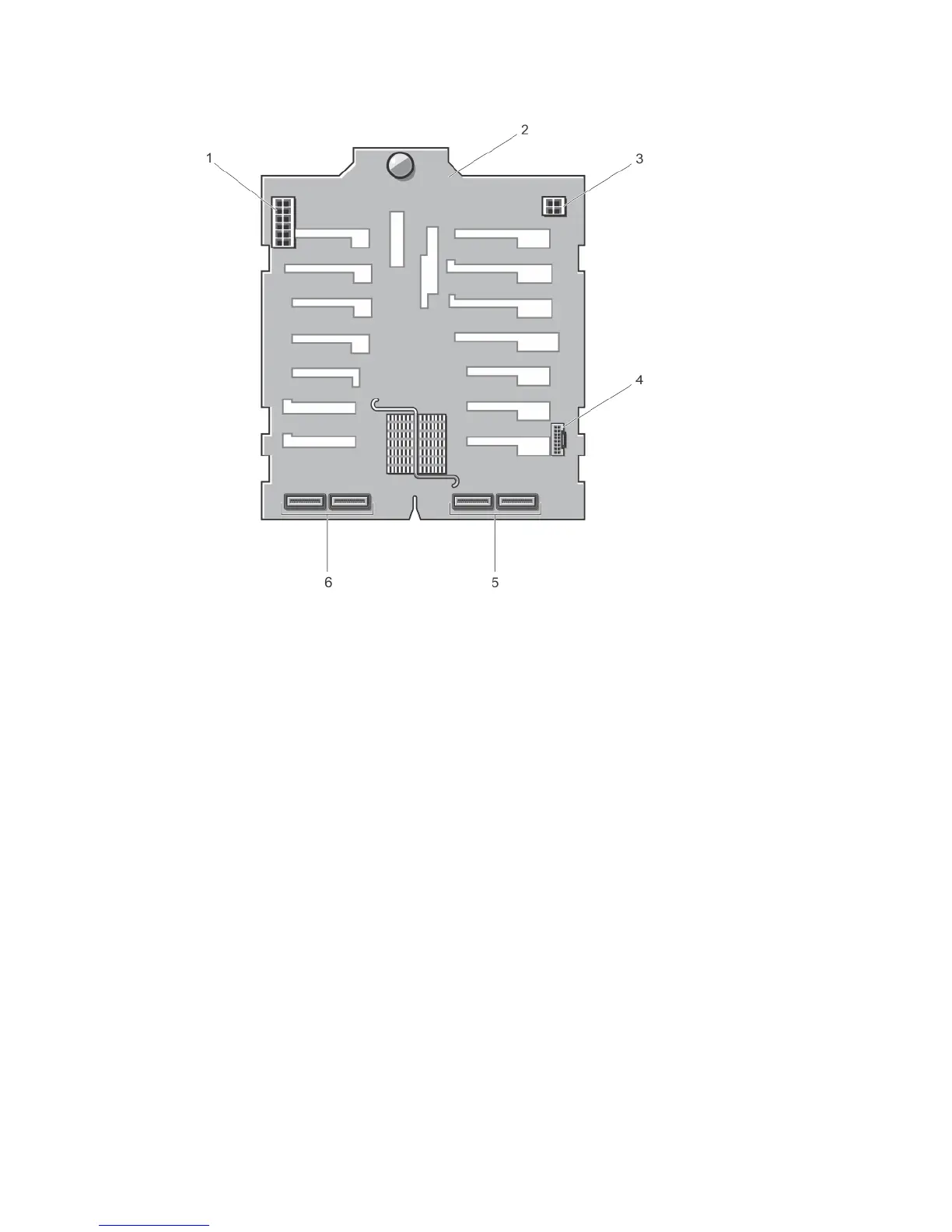

Figure 32. Connectors on an x16 Hard-Drive Backplane
1. backplane power connector
2. backplane
3. power connector for optical drive and tape
drive
4. I2C connector
5. primary SAS connectors (A and B)
6. secondary SAS connectors (A1 and B1)
