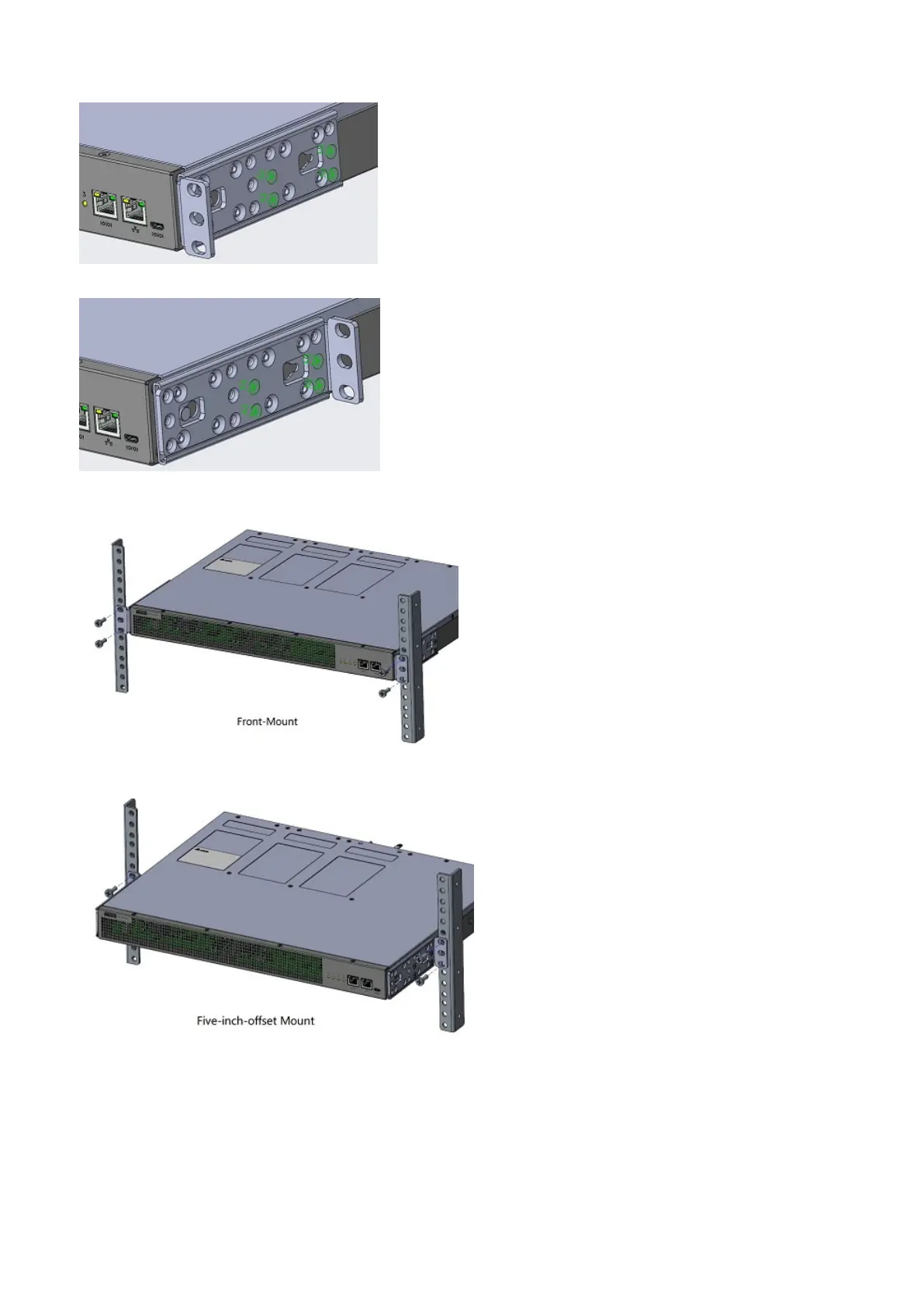

Five-inch-offset mount
4. Slide the EPS into the two-post rack until the mounting bracket ears line up with the rack.
Front-mount
Five-inch-offset mount
5. Attach the switch to the two-post rack using two #12-24 screws on each side.
To remove the switch from the rack, unscrew the four #12-24 rack-mounting screws.
N-Series EPS installation
