Dell PowerVault MD3200 User Manual

Management: Installing Array Components 217

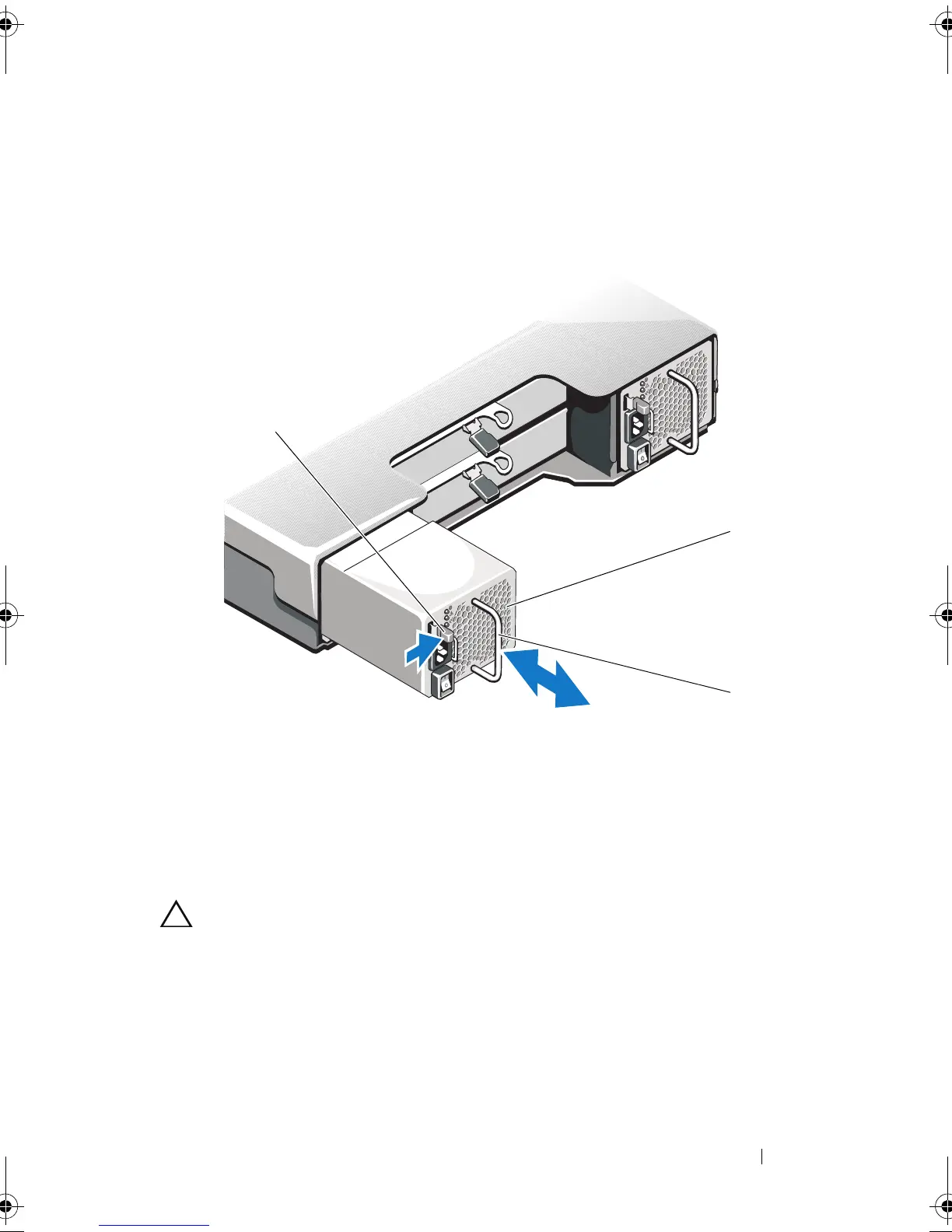

Figure 15-11. Removing and Installing a Power Supply/Cooling Fan Module
Installing a Power Supply/Cooling Fan Module
CAUTION: Many repairs may only be done by a certified service technician. You
must only perform troubleshooting and simple repairs as authorized in your
product documentation, or as directed by the online or telephone service and
support team. Damage due to servicing that is not authorized by Dell is not covered
by your warranty. Read and follow the safety instructions that came with the
product.
1 Slide the power supply/cooling fan module into the chassis until it is fully
seated and the release tab clicks into place. See Figure 15-11.
1 release tab 2 power supply
3 power supply handle
1
3
2
book.book Page 217 Tuesday, September 27, 2011 3:25 PM

Dell PowerVault MD3200 Specifications

General

HDD speed	15000 RPM
RAID levels	0, 1, 5, 6, 10
Storage drive size	3.5 \
Storage drive capacity	300 GB
Storage drive interface	Serial Attached SCSI (SAS)
Storage drives installed	Yes
Installed storage drive type	HDD
Supported storage drive types	HDD & SSD
Total installed storage capacity	0.6 TB
Maximum supported storage capacity	- TB
Number of storage drives installed	2
Number of storage drives supported	12
Host ports	4
RJ-45 ports quantity	1
Chassis type	-
Product color	Black
AC input voltage	90-264 V
AC input frequency	47/63 Hz
Power supply unit (PSU) capacity	600 W
Operating altitude	-15 - 3048 m
Storage temperature (T-T)	5 - 40 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 85 %
Operating relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Depth	561 mm
Width	446.3 mm
Height	86.8 mm
Weight	29300 g
