232 Management: Installing Array Components

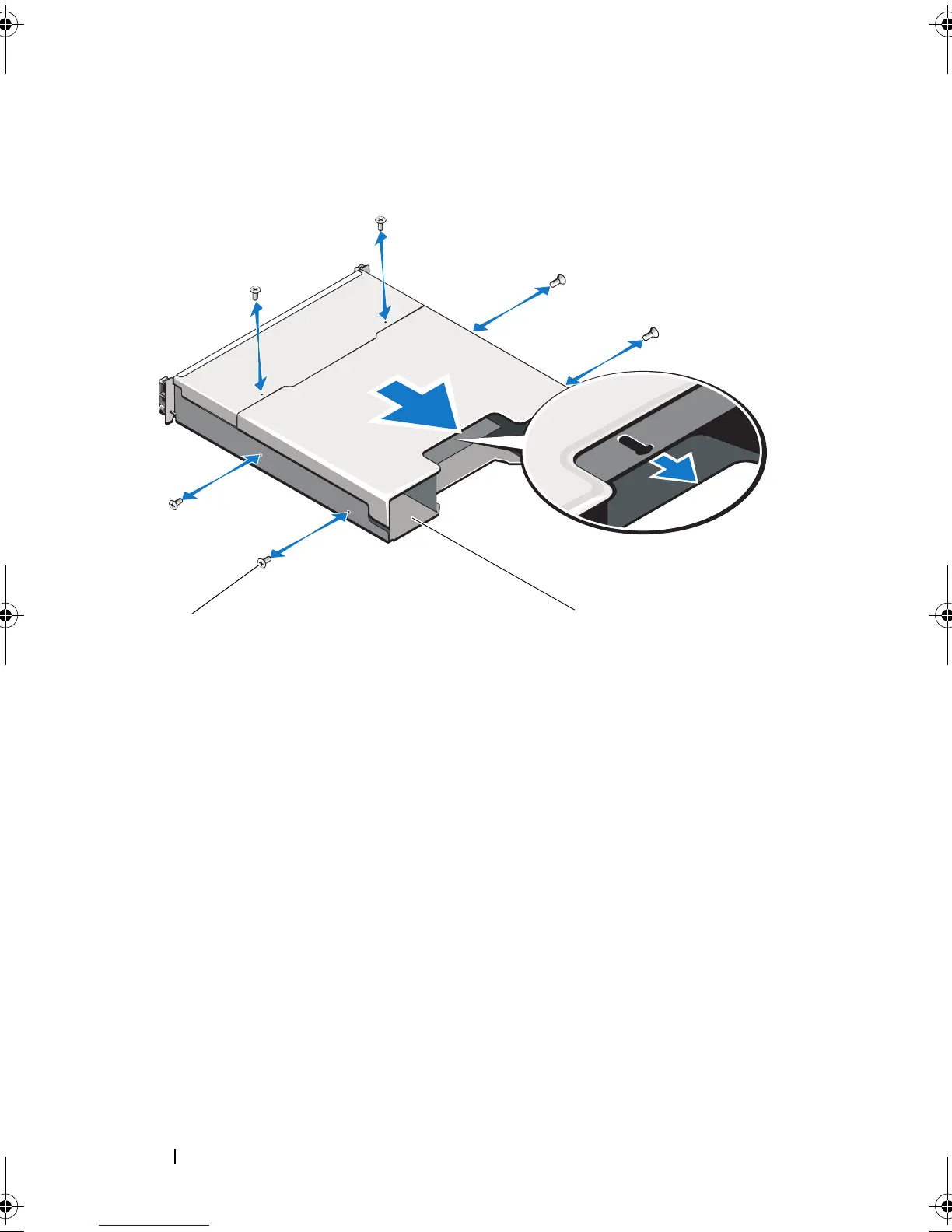

Figure 16-15. Removing and Installing the RAID Controller Module/Power Supply Cage

1 screws (6) 2 RAID controller module/power

supply cage

book.book Page 232 Saturday, September 24, 2011 9:06 AM
