Dell Precision 7540 - Page 25

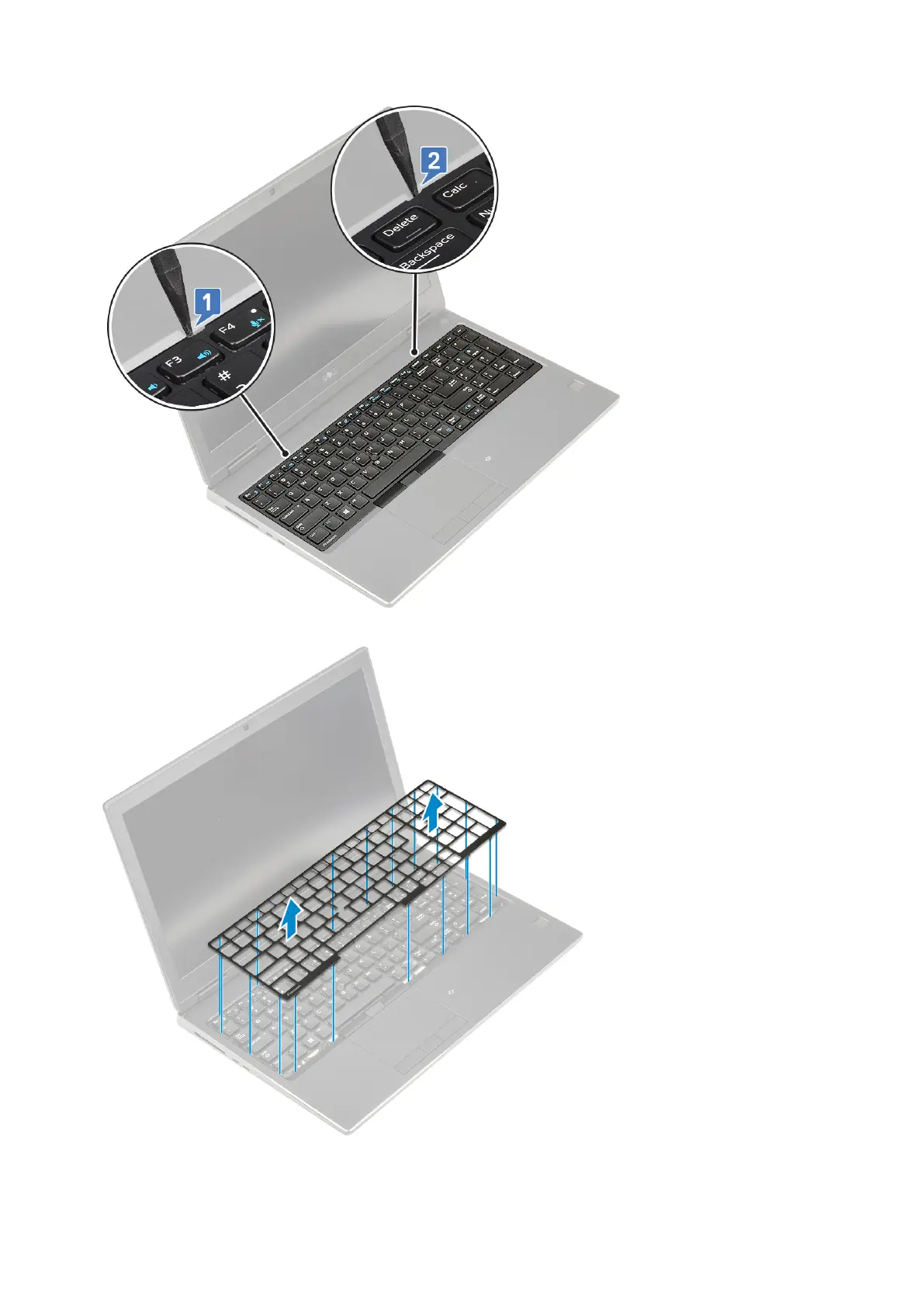

d. Lift the keyboard lattice away from the system.
e. Remove the 6 (M2.0x2.0) screws that secure the keyboard to the palmrest [1].
f. Pry the bottom edge of the keyboard and then work along the left and right sides of the keyboard [2,3,4].
Removing and installing components
25
