Installing the power daughter-board

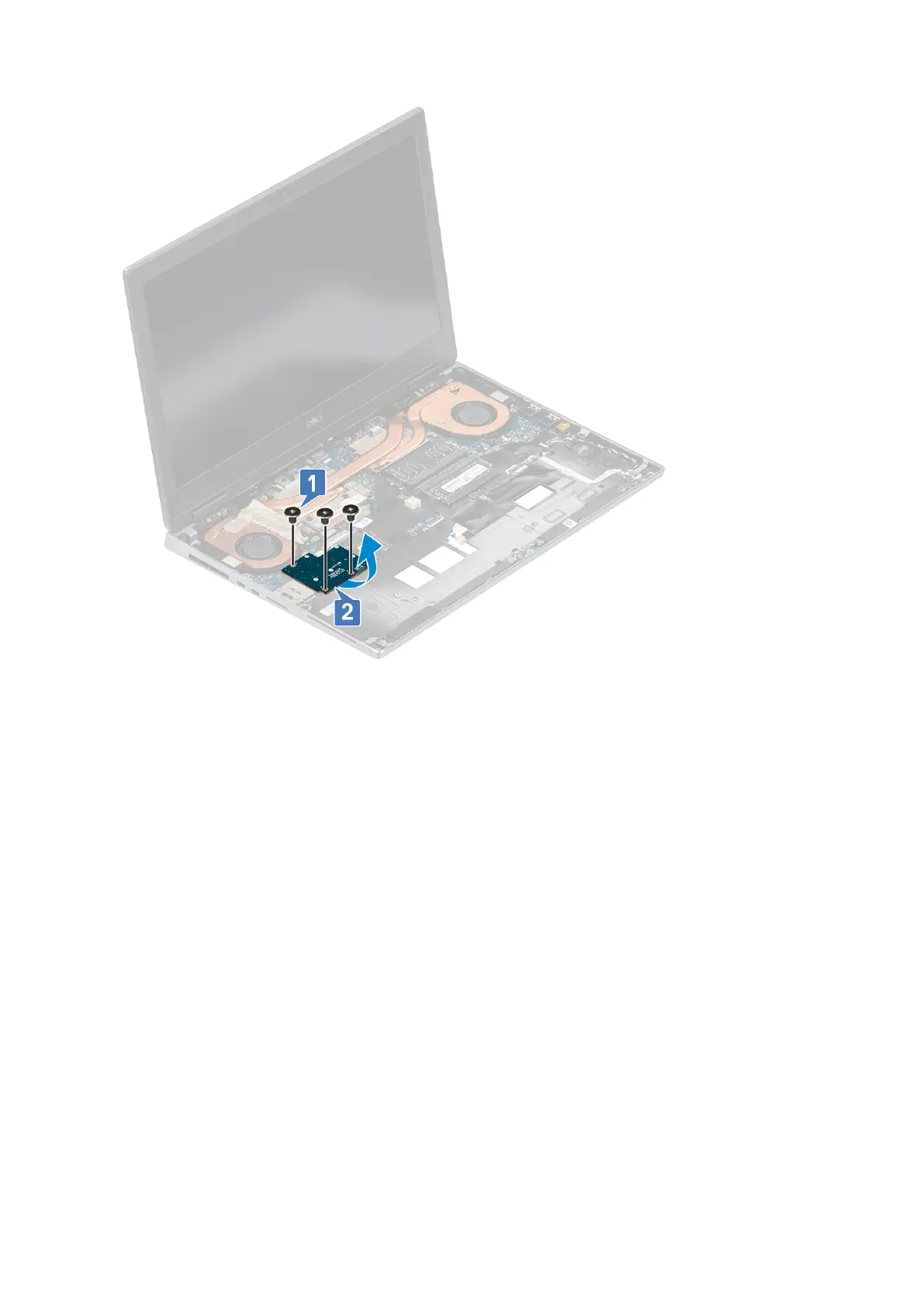

1. To install the power daughter-board:
a. Align the power daughter-board pin with its connector on the system board.
b. Push the power daughter-board to connector on the system board until it clicks into place [1].
c. Replace the 3 (M2.0x3.0) screws to secure the power daughter-board to the system board [2].
