Dell Precision 7540 - Installing the Display Hinge

h. palmrest
i. display assembly
j. display bezel
k. display panel
3. To remove display hinge:

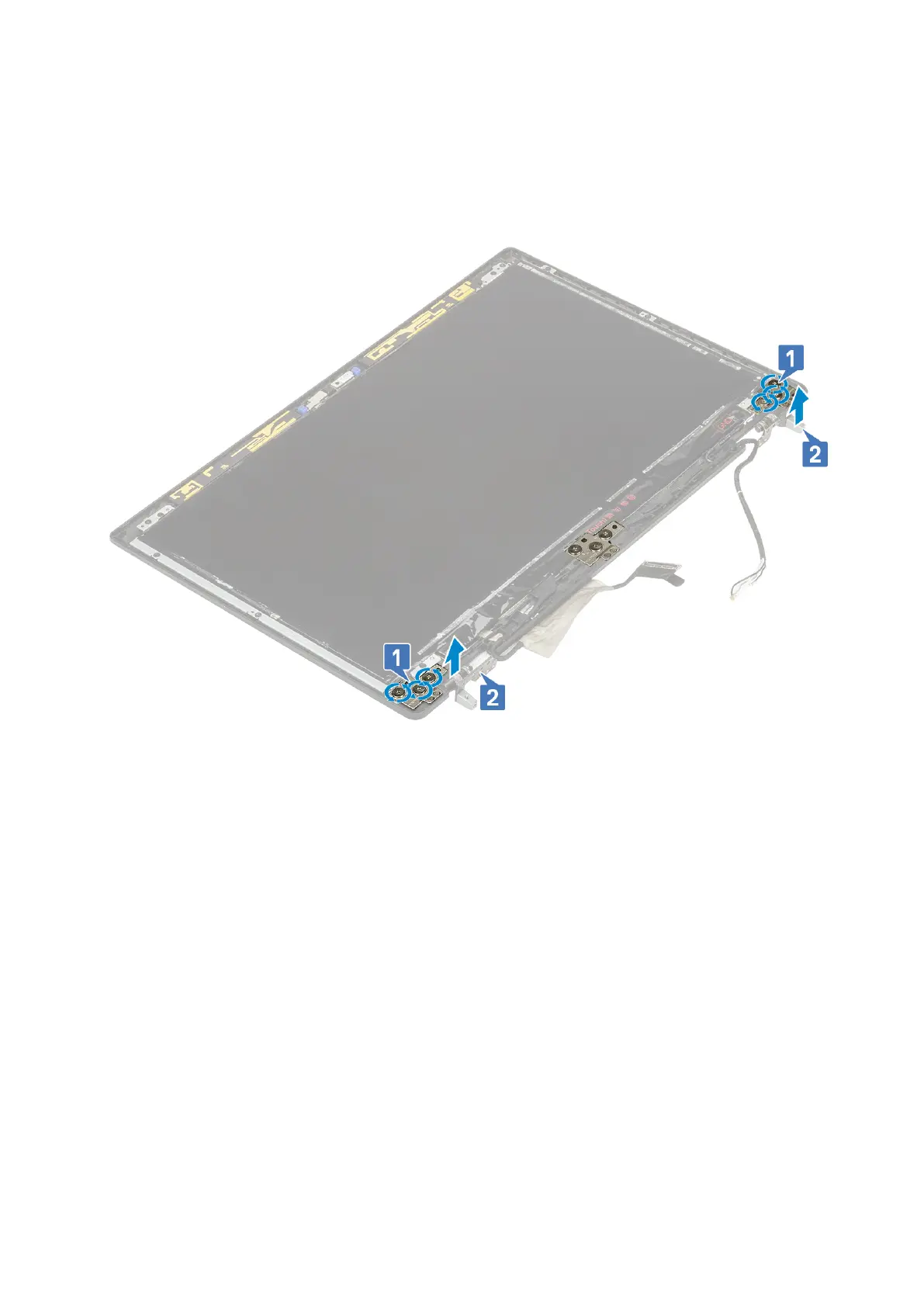

a. Remove the 6 (M2.5x3.5) screws that secure the display hinges to the display assembly [1].
b. Remove the display hinges [2].
Installing the display hinge
1. To install display hinge:
a. Place the display hinge in its slot on the display assembly [1].
b. Replace the 6 (M2.5x3.5) screws to secure the display hinge to the display assembly [2].
