2. Install the:
a. palmrest
b. keyboard
c. hard drive
d. battery
e. base cover
f. SD card
3. Follow the procedure in After working inside your computer.
Palm rest
Removing the palmrest
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. SD card
b. base cover
c. battery
d. keyboard
e. hard drive
3. To remove the palmrest:

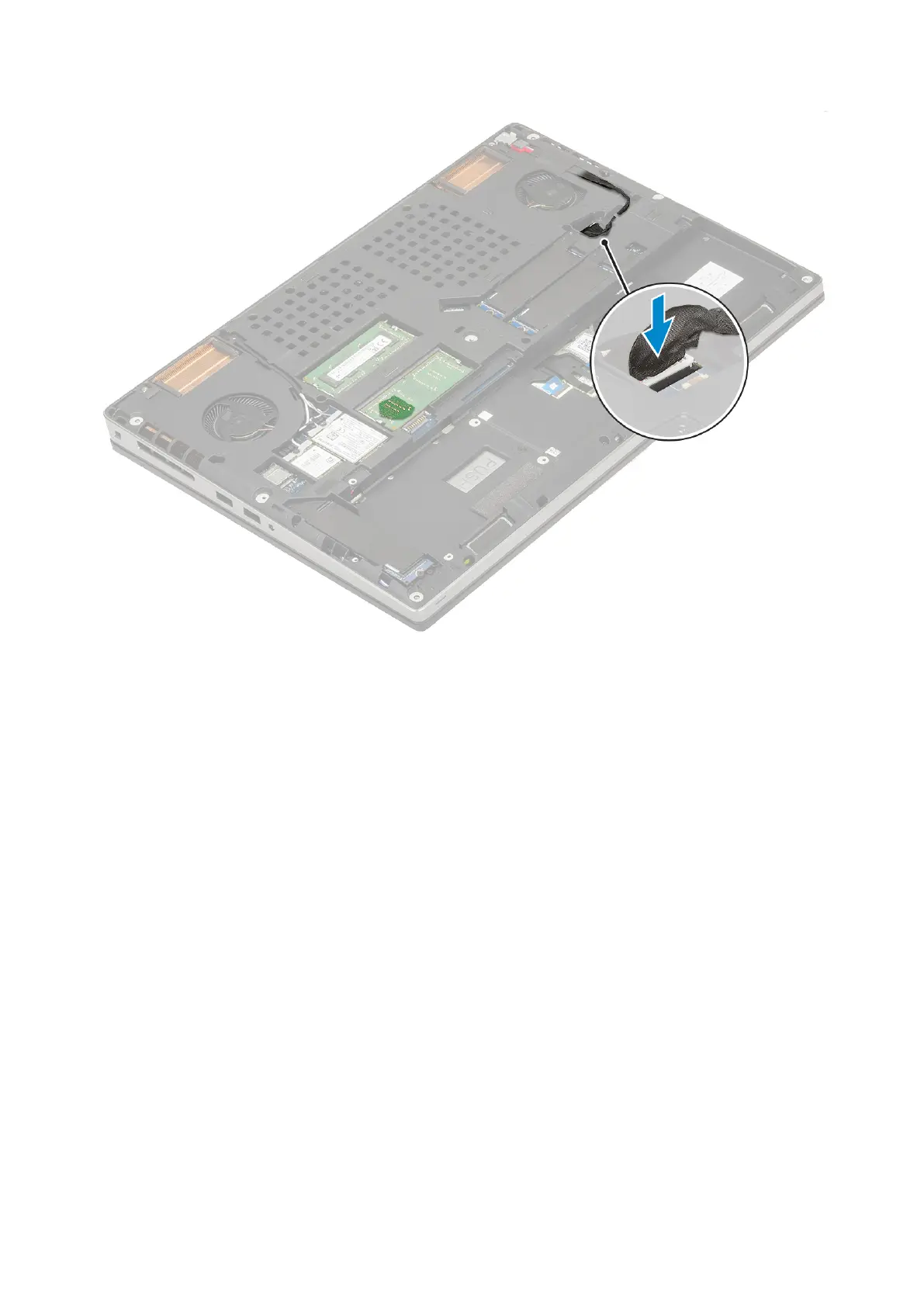

a. Lift the latch and disconnect the touchpad cable from the connector on the system board [1].
b. Remove the 11 (M2.0x5.0) and the 2 (M2.0x3.0) screws that secure the palmrest assembly in place [2, 3].
56
Removing and installing components
