Installing the palmrest
1. To install the palmrest:

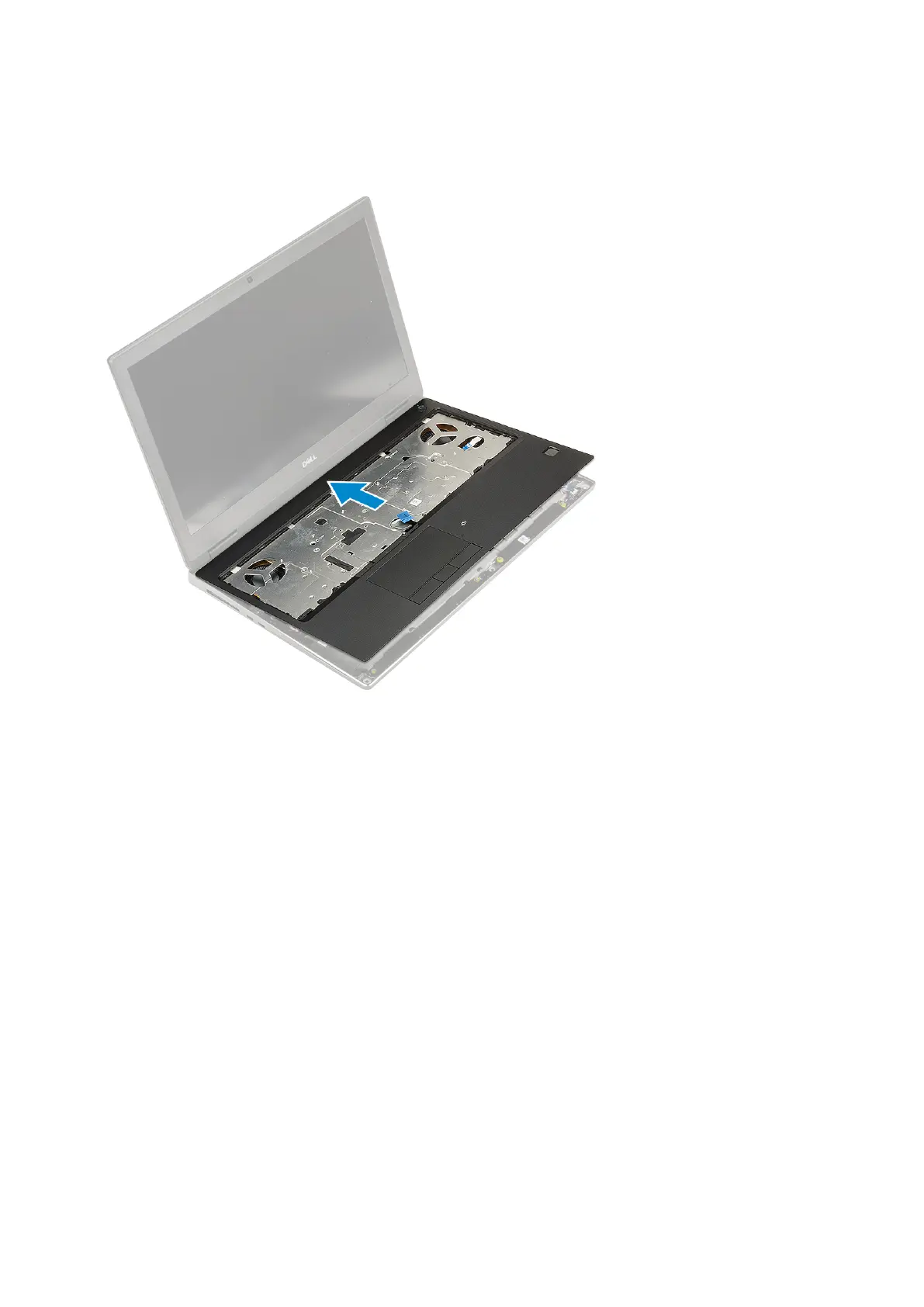

a. Align the palmrest on the system and press until it snaps in its place .
b. Replace the 2 (M2.0x3.0) screws to secure the palmrest to the system [1].
c. Connect the system board and power button cable to the connectors on the system board [2,3].
Removing and installing components
59
