Dell Precision Rack 7910 User Manual

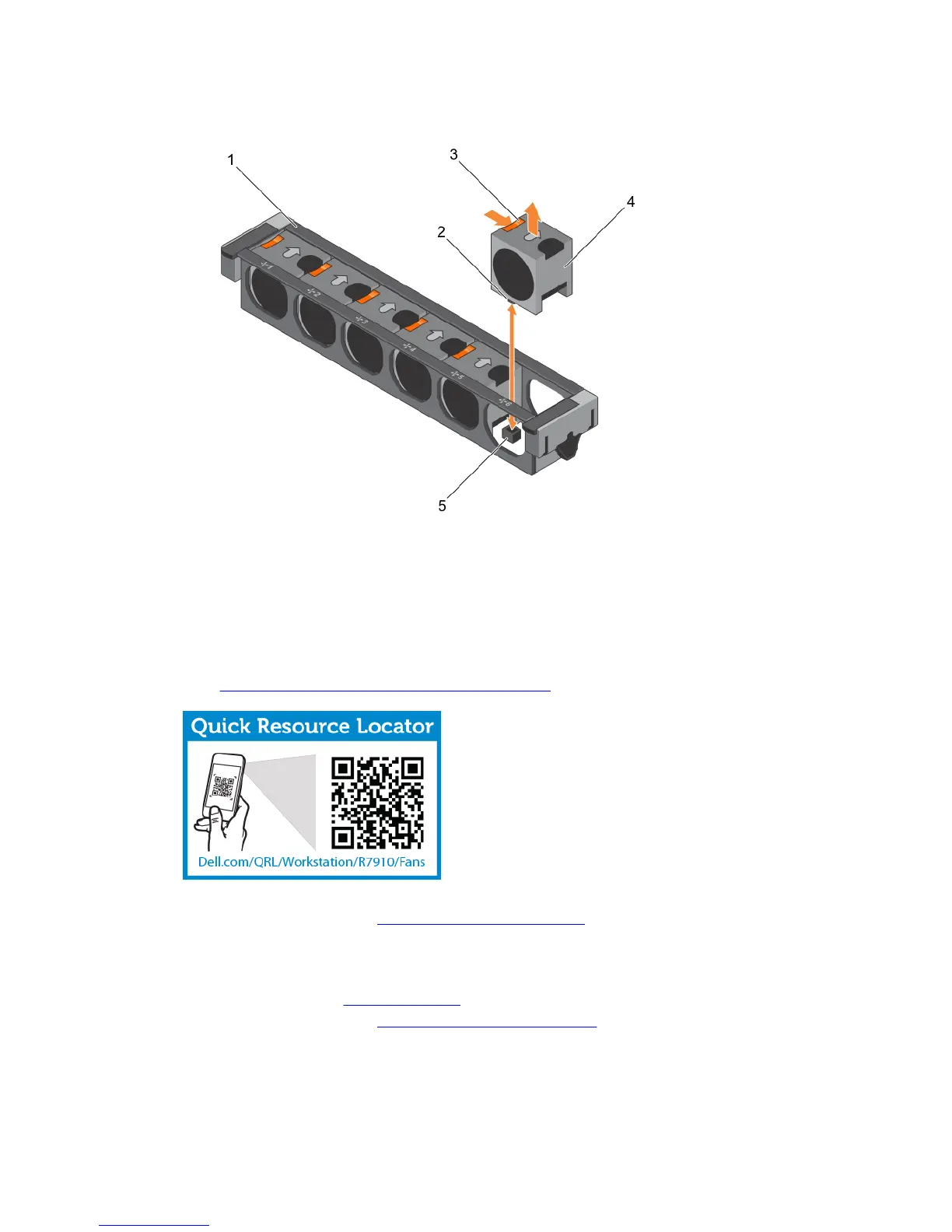

Figure 14. Removing and installing a cooling fan
1. cooling-fan assembly 2. cooling-fan connector (6)
3. fan release tab (6) 4. cooling fan (6)
5. cooling-fan connector on system board
(6)
To see a video on how to remove & install a fan or the fan assembly, scan this QR code, or click
here: http://www.Dell.com/QRL/Workstation/R7910/Fans
4. Replace the cooling fan.
5. Follow the procedure listed in After working inside your system.
Installing a cooling fan
1. Ensure that you read the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
41

Dell Precision Rack 7910 Specifications

General

Chipset	Intel C612
Form Factor	2U Rack
Processor Options	Intel Xeon processor E5-2600 v4 product family
Storage Options	SATA, SAS
Graphics	NVIDIA Quadro or AMD FirePro
Power Supply	1100W
Network	Integrated Intel Gigabit Ethernet
Operating System	Red Hat Enterprise Linux, Ubuntu
