Hard-drive indicator codes

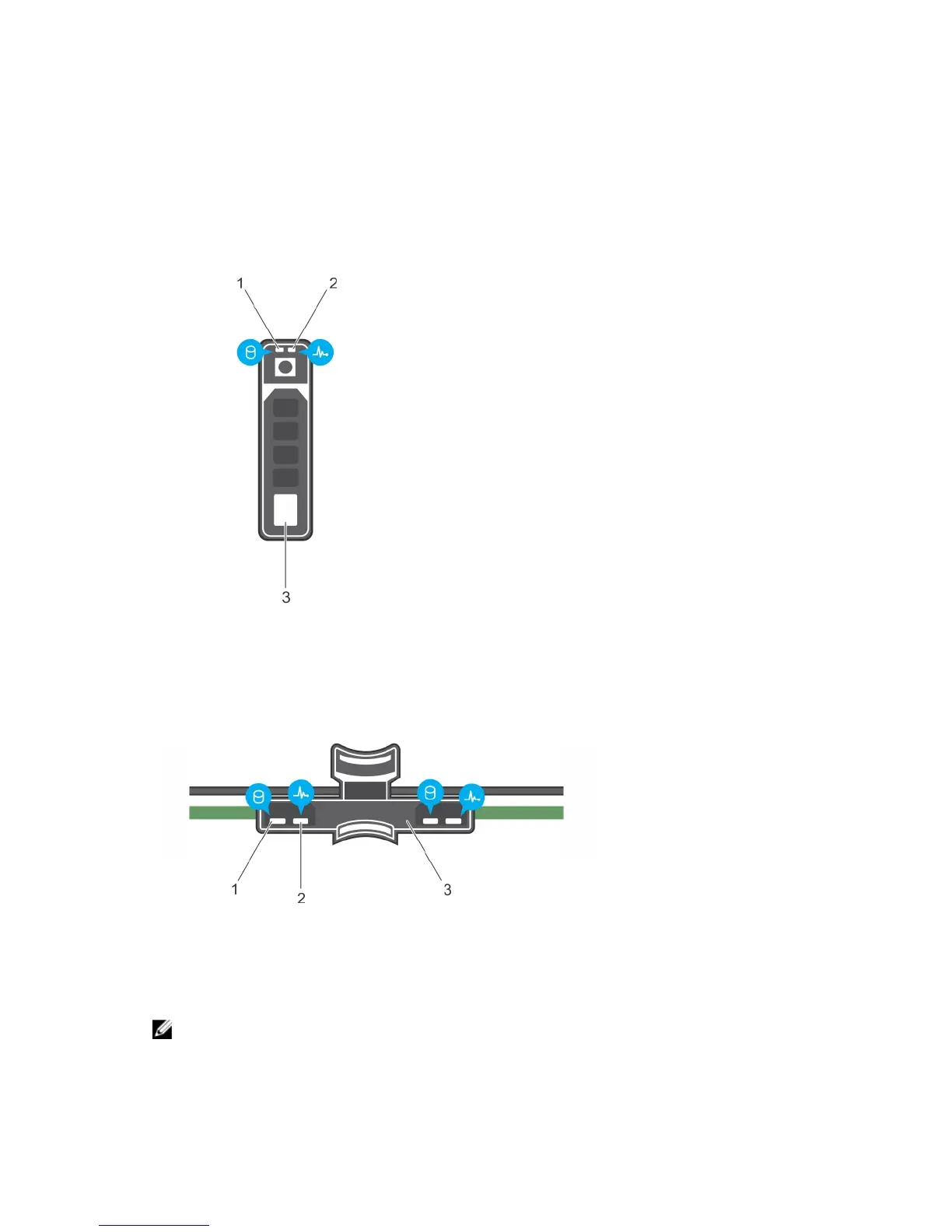

Figure 2. Hard-drive indicators
1. hard-drive activity indicator 2. hard-drive status indicator
3. hard drive
Figure 3. Hard-drive indicators on the hard-drive tray backplane
1. hard-drive activity indicator 2. hard-drive status indicator
3. hard-drive backplane on hard-drive tray
NOTE: If the hard drive is in Advanced Host Controller Interface (AHCI) mode, the status indicator
(on the right side) does not function and remains off.
