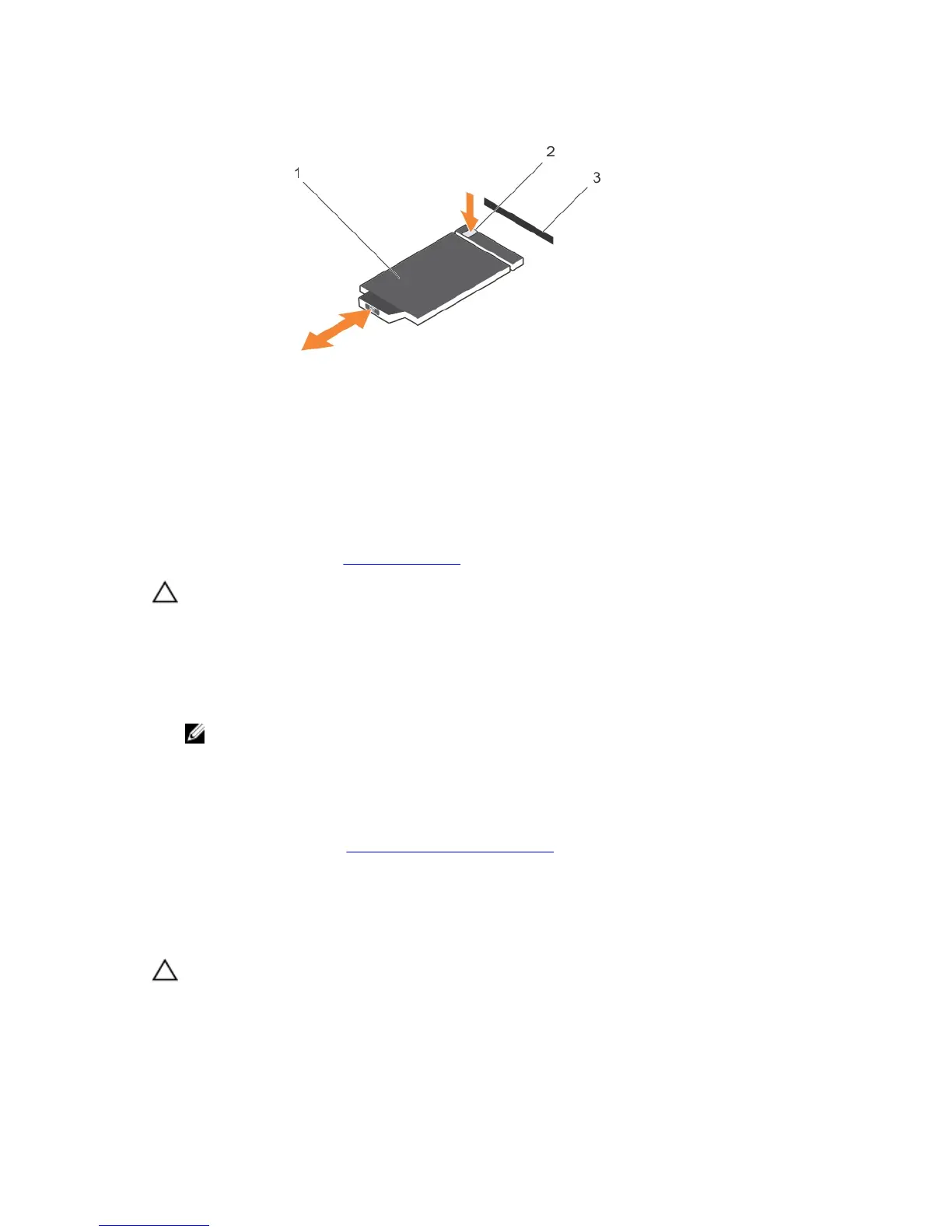

Figure 45. Removing and installing the information tag
1. information tag 2. tab
3. slot
Installing the control panel
1. Ensure that you read the Safety instructions.
CAUTION: Many repairs may only be done by a certified service technician. You should only
perform troubleshooting and simple repairs as authorized in your product documentation, or as
directed by the online or telephone service and support team. Damage due to servicing that is
not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that came with the product.
1. Replace the blank information tag in the new control panel with the information tag retained from
the old control panel.
NOTE: Information tag lists system information such as Service Tag, NIC, MAC address, and so
on.
2. To install the information tag, push the information tag into the control-panel slot.
3. Connect all the applicable cables to the control panel.
4. Slide the control panel into the slot in the chassis.
Follow the procedure listed in After working inside your system .
System board
Removing the system board
CAUTION: Many repairs may only be done by a certified service technician. You should only
perform troubleshooting and simple repairs as authorized in your product documentation, or as
directed by the online or telephone service and support team. Damage due to servicing that is
not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that came with the product.
